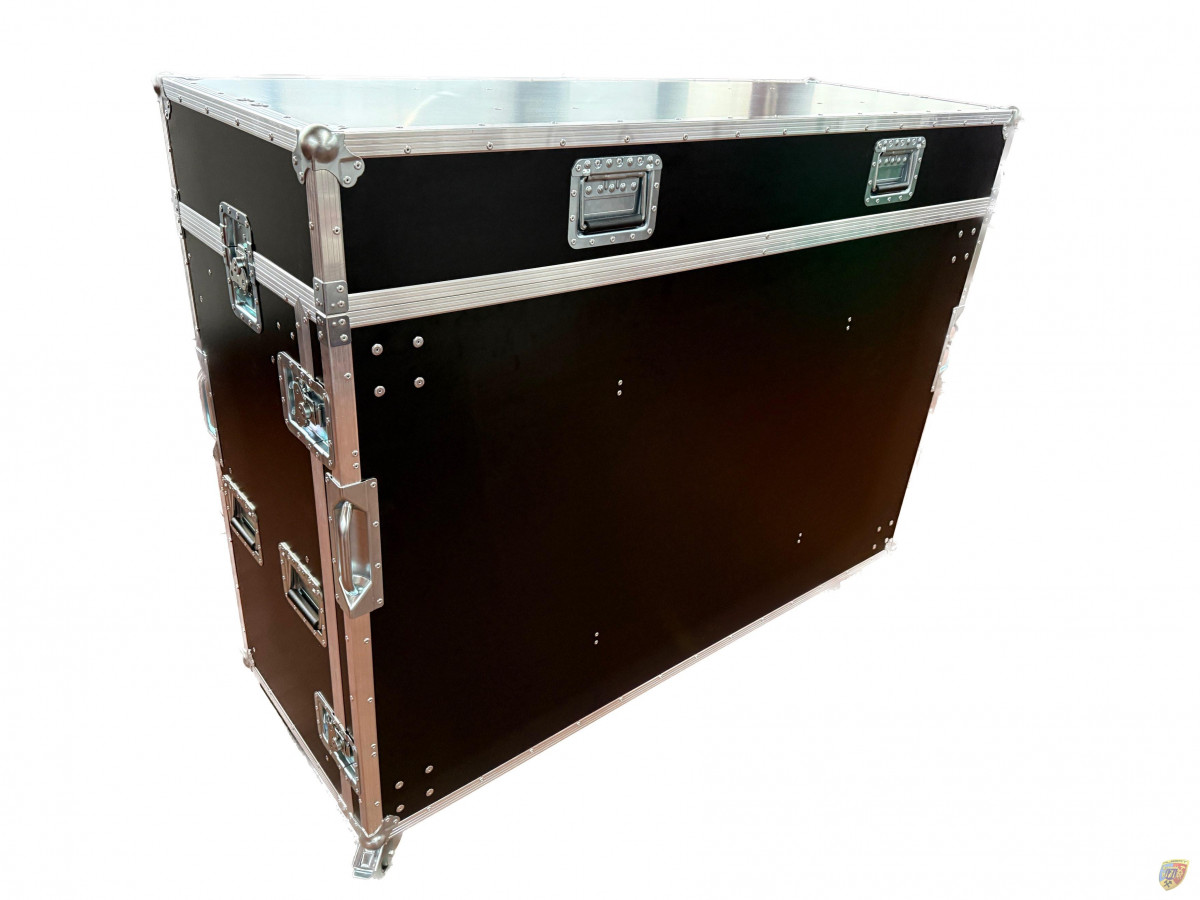

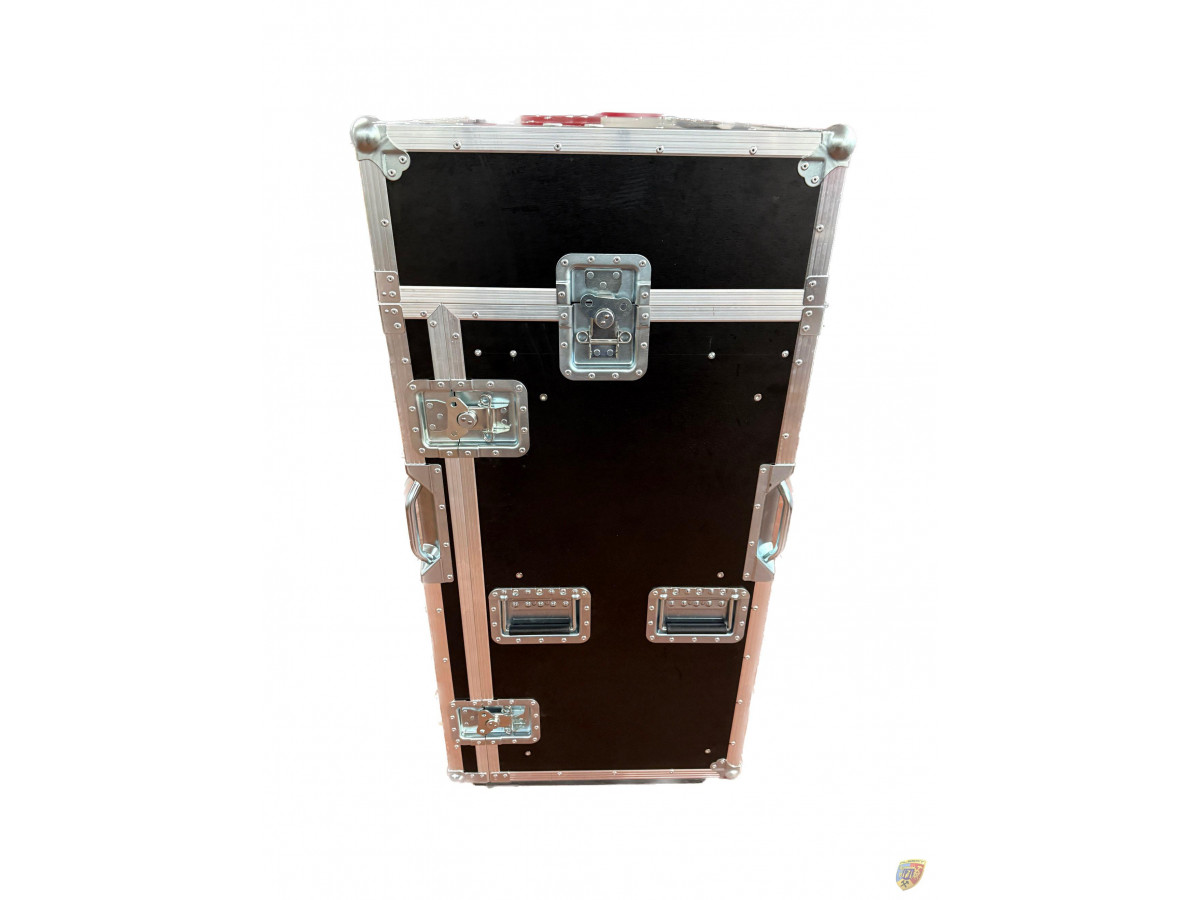

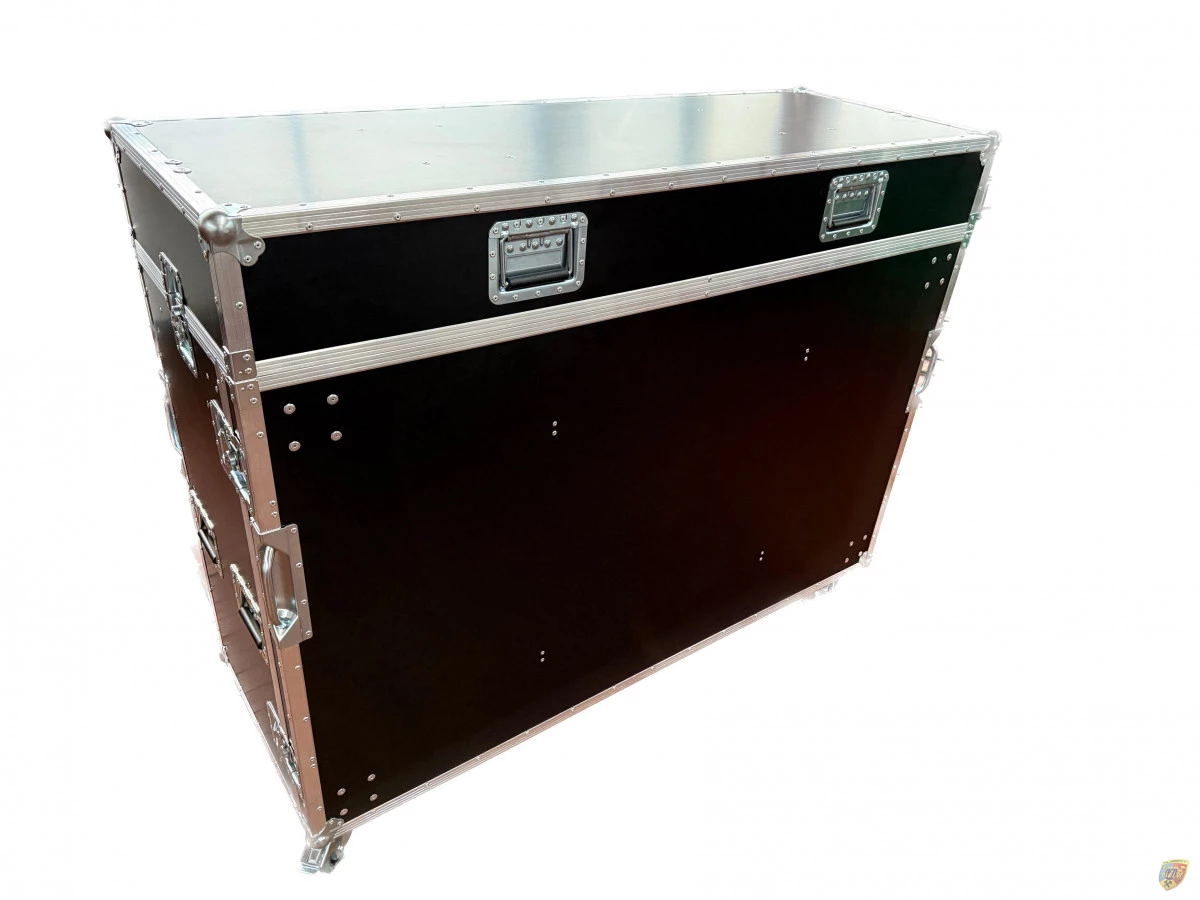

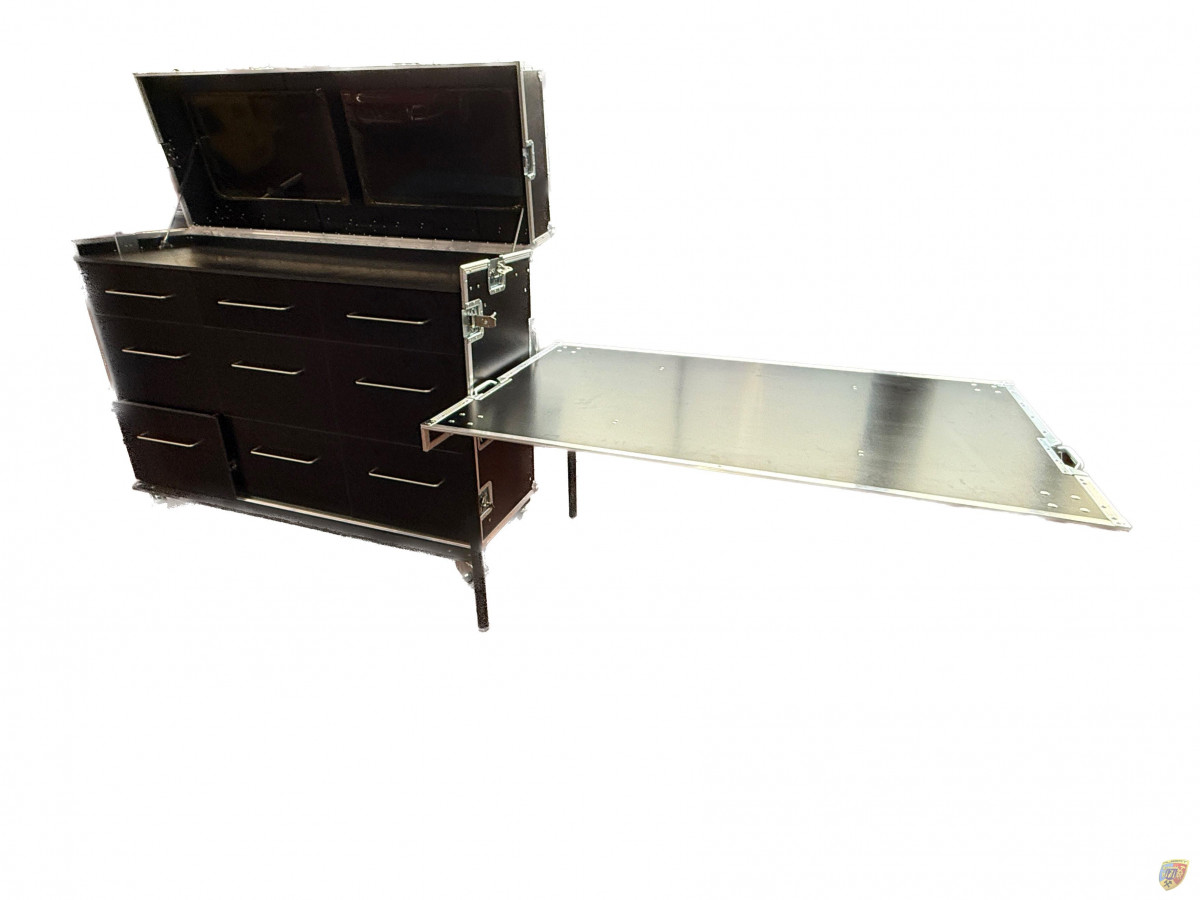

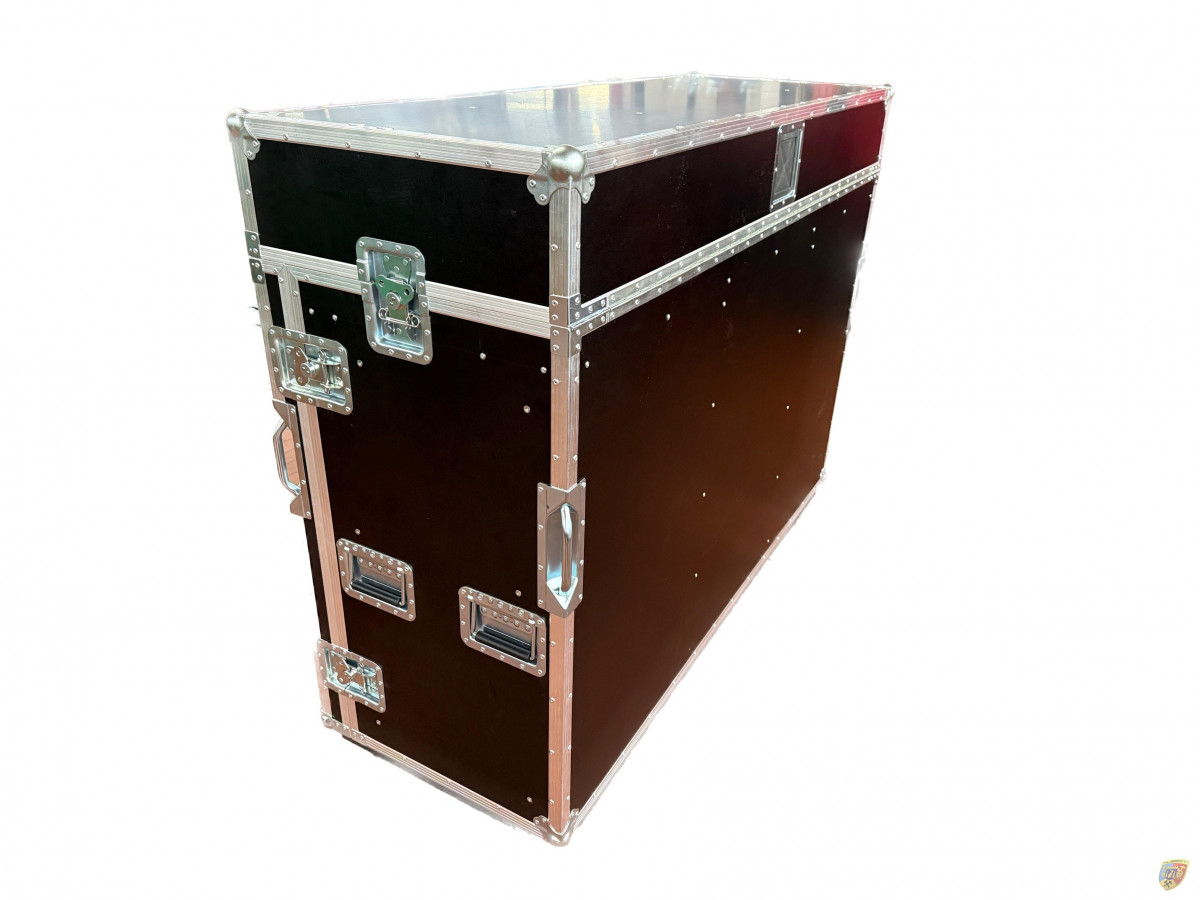

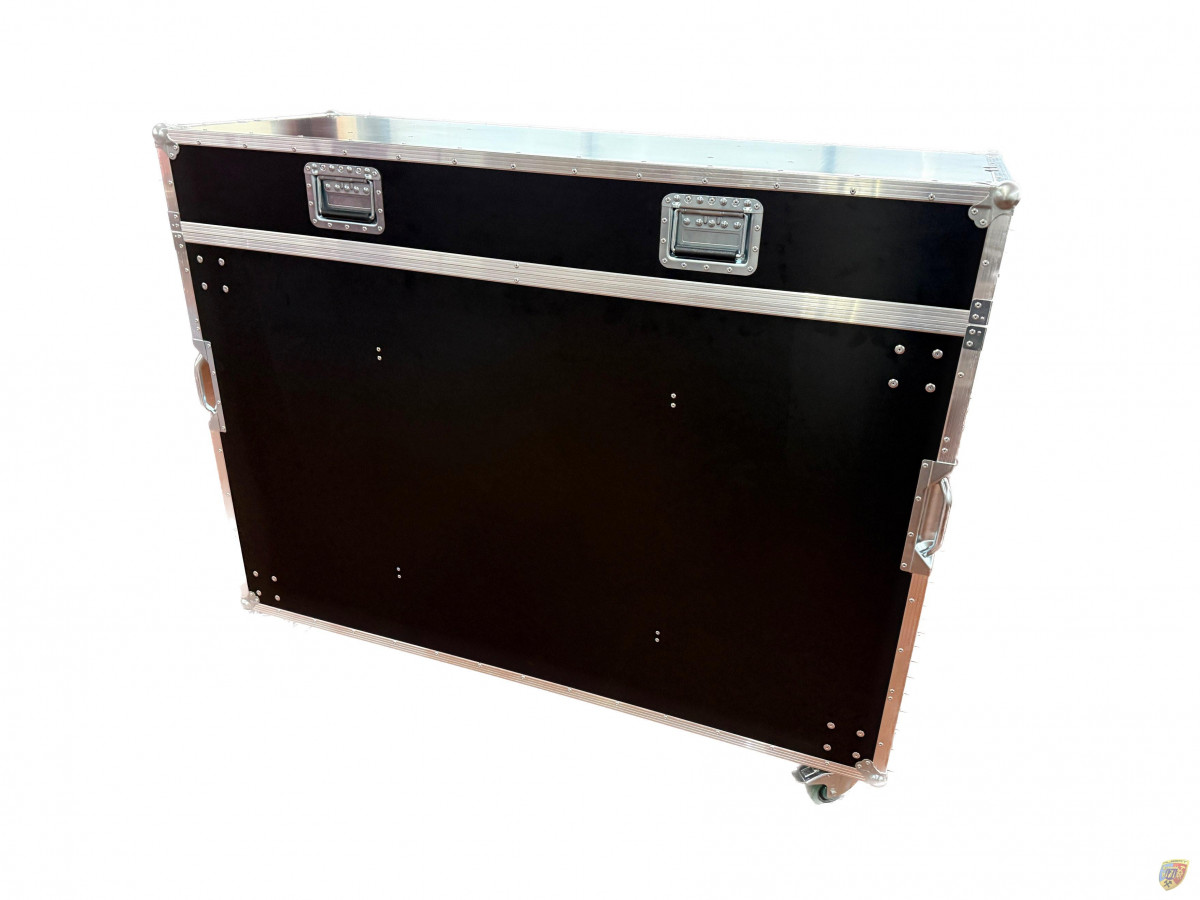

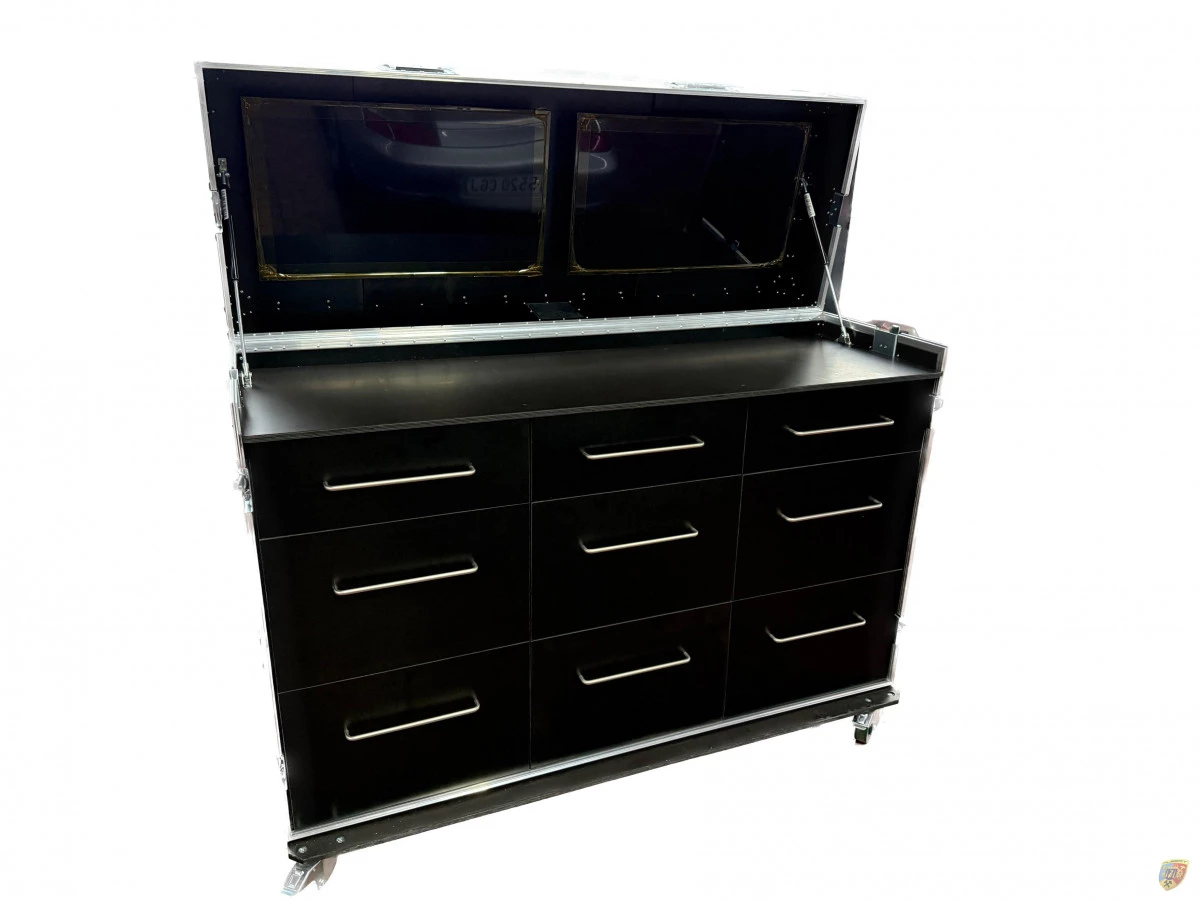

Pitbox L-Case with drawers also with screens - Type Albert Motorsport:
- Internal dimensions: 166x120x58cm (WxHxD)
- External dimensions: 170x140x62cm (WxHxD) Overall dimensions including wheels
- Inner height lid top/front: 20cm / 7cm
- Lid continuous at the top, can be opened
- Pneumatic lid opener
- 9 mm birch multiplex phenol black,
- Base plate made of 27mm birch plywood, screen/film
- 9.5mm locking profile, male/female
- 30mm edge protection profile
- Large HD ball corners

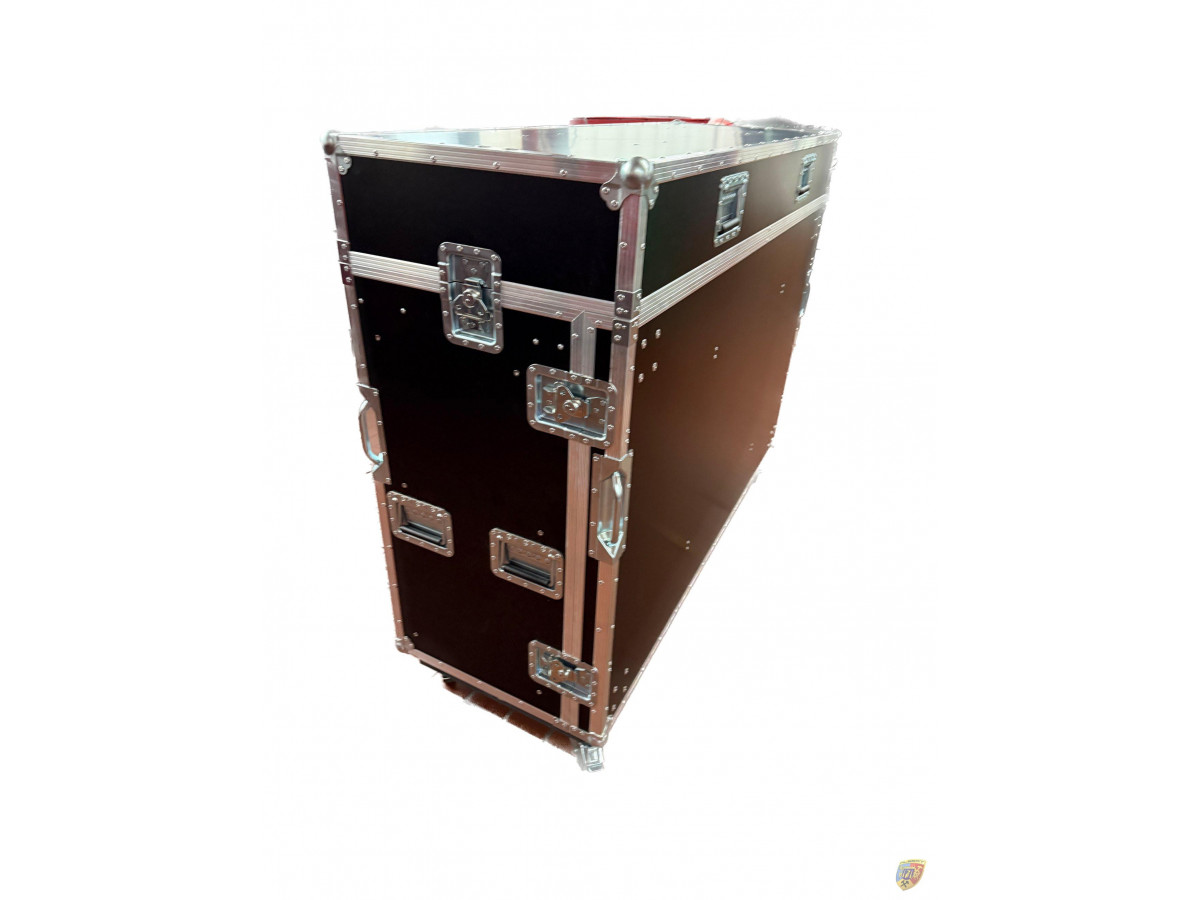

- 6 large butterfly closures with push-forward spring
- 6 large folding handles in built-in bowl, spring-loaded
- 4 edge-mounted handle in the front cover/body vertical
- 2 L-corner with hinge large
- 1 rod hinge
- 4 x 100mm Blickle Green Wheels, all with stop, heavy duty castor
- mounted on a roller board
Interior design:

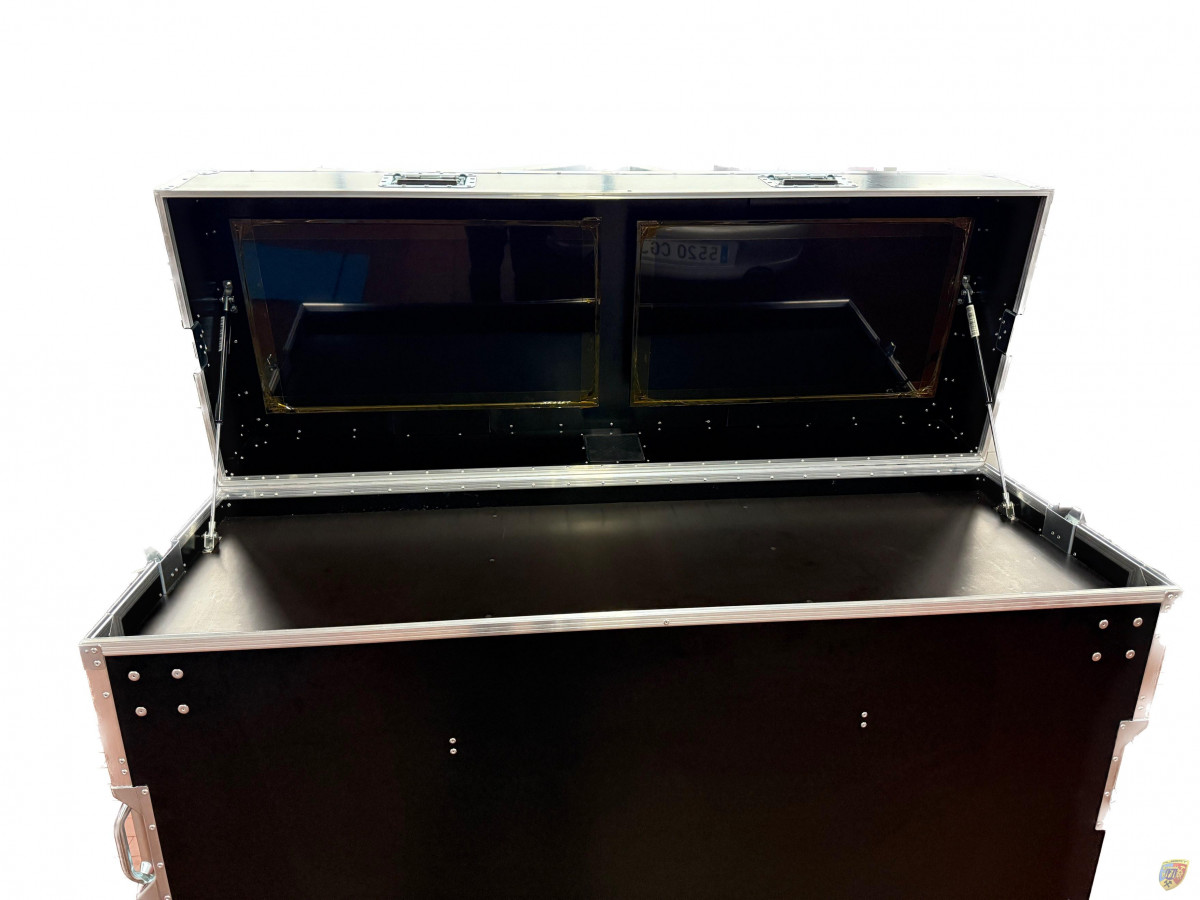

- Work surface made of 15mm MP, black,
- Height of work surface including castors: 110cm
- vertical compartment dividers made of 15mm MP, black
- 1 Rear cable outlet in the upper hinged cover
- installation dish with rubber sleeve
- 2 pneumatic lid openers 200NM
Under the work surface:
- 2 vertical partitions made of 18mm MP f/f, with 32mm hole row drilling
- 2 side panels made of 15mm MP f/f with 32mm hole row drilling

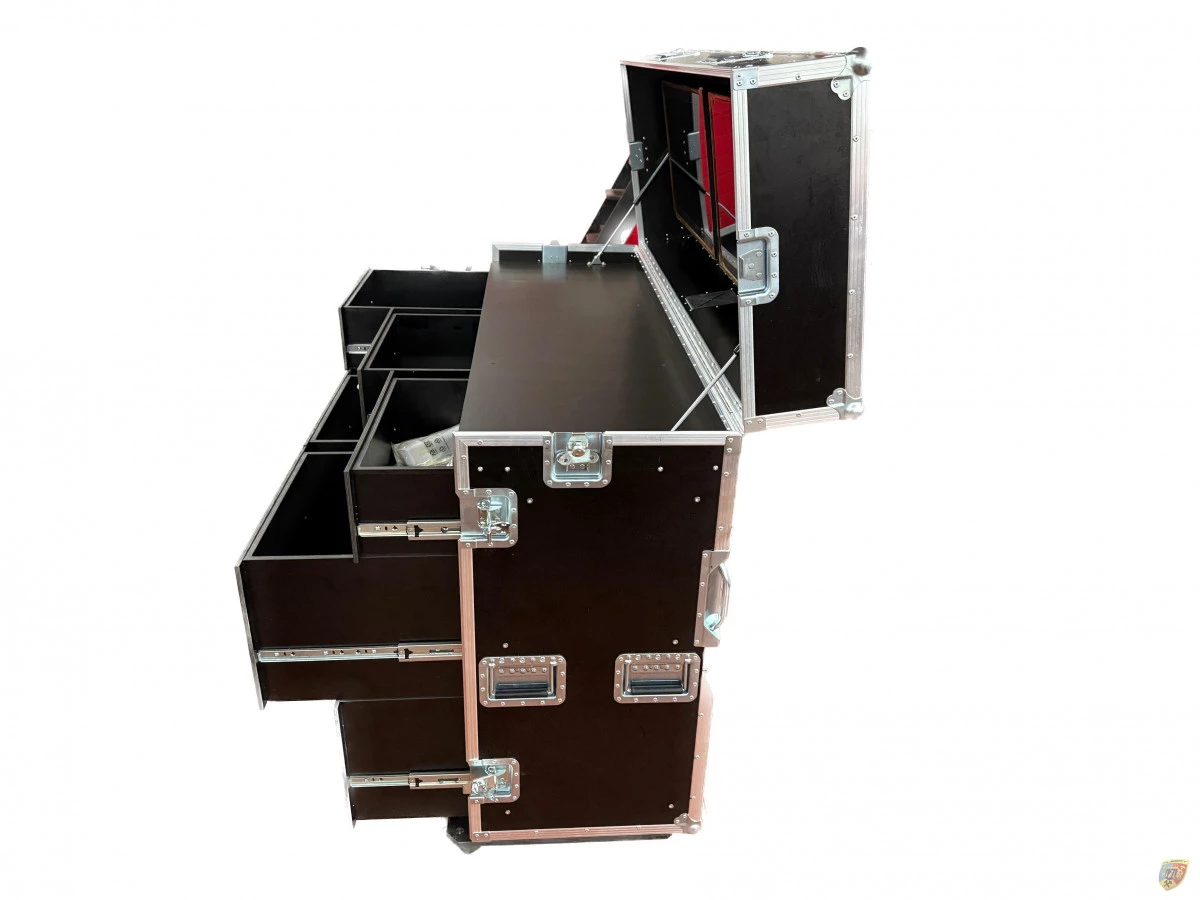

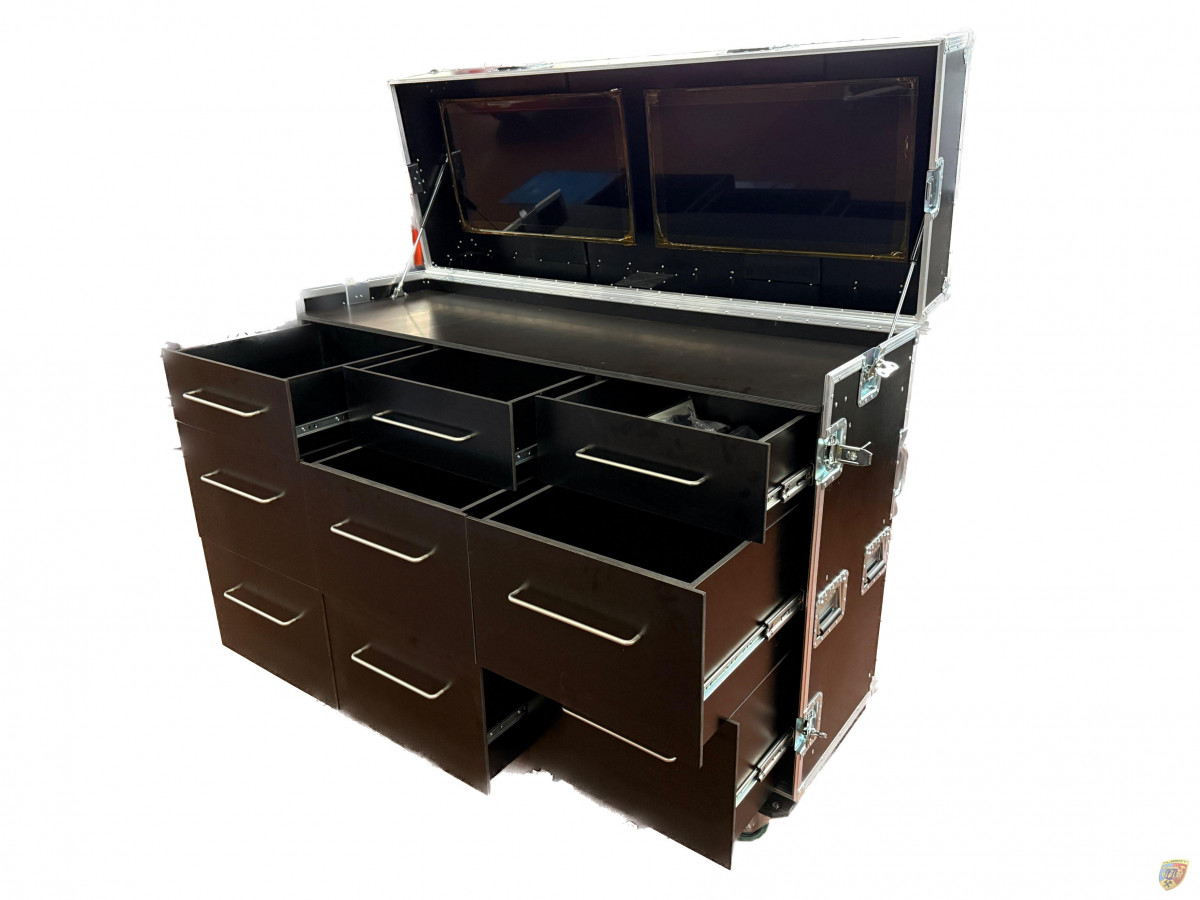

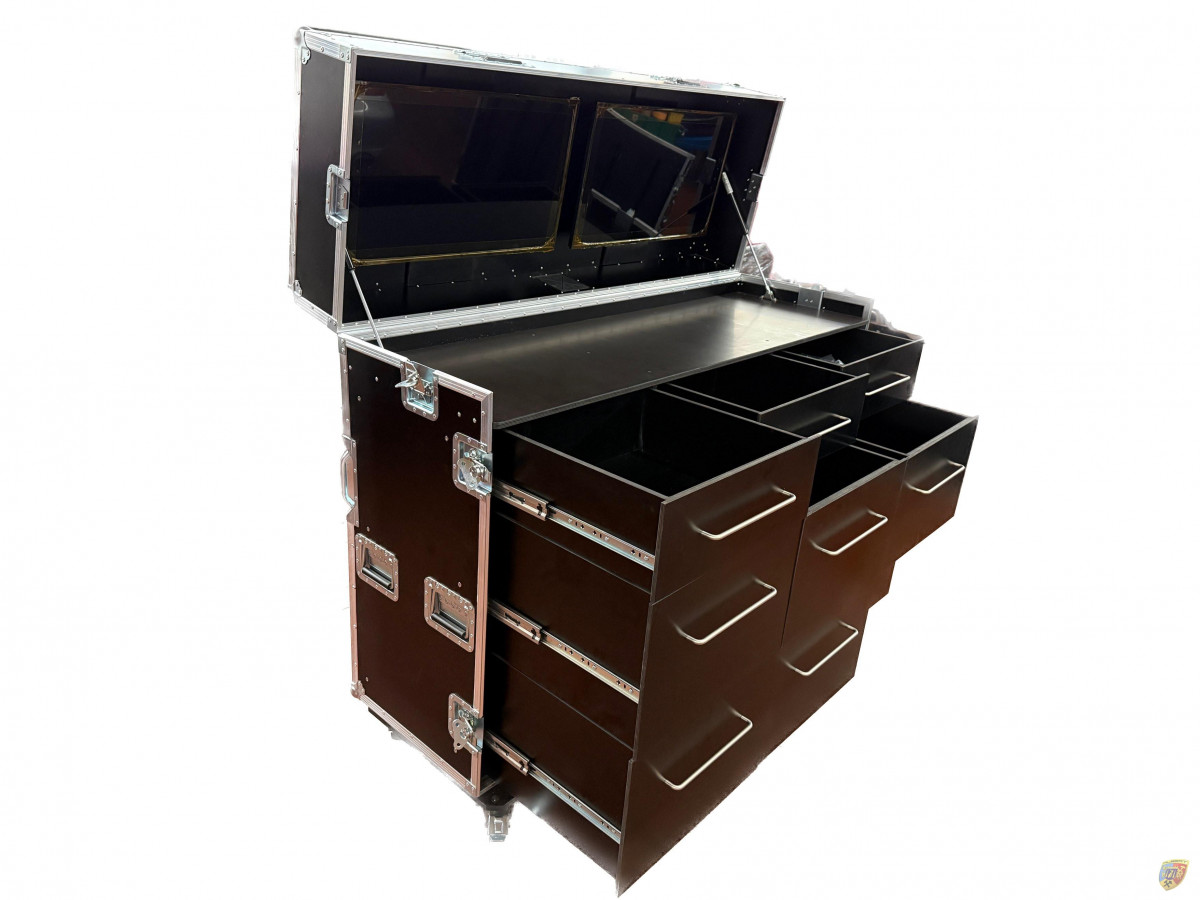

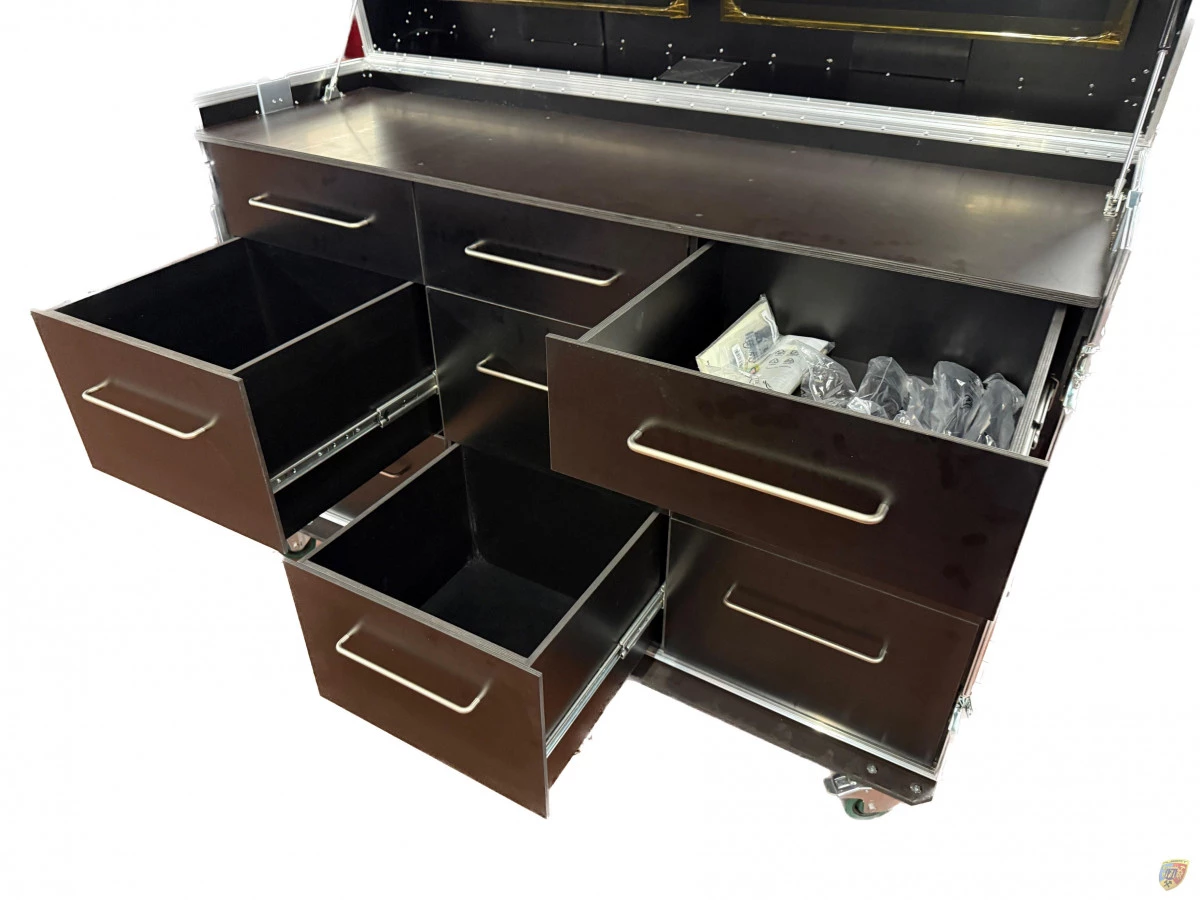

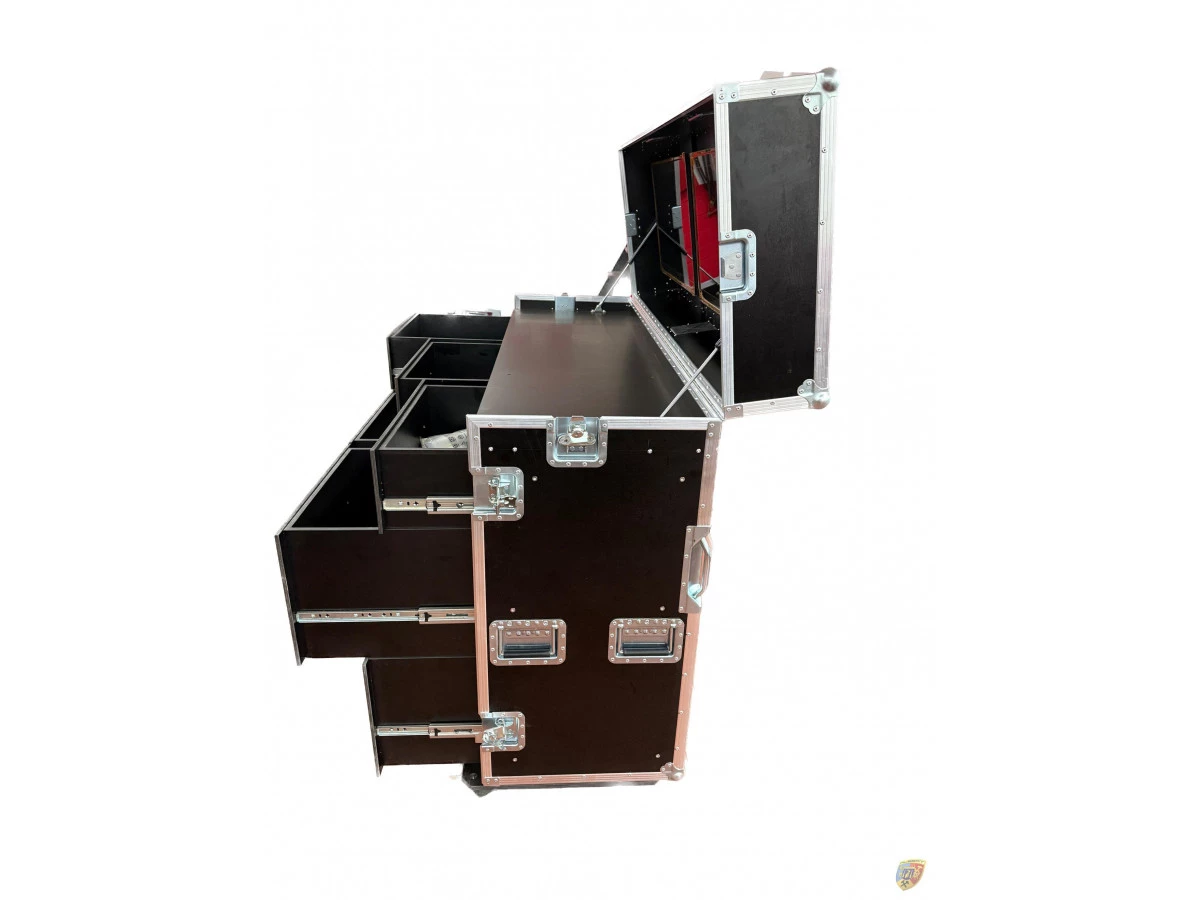

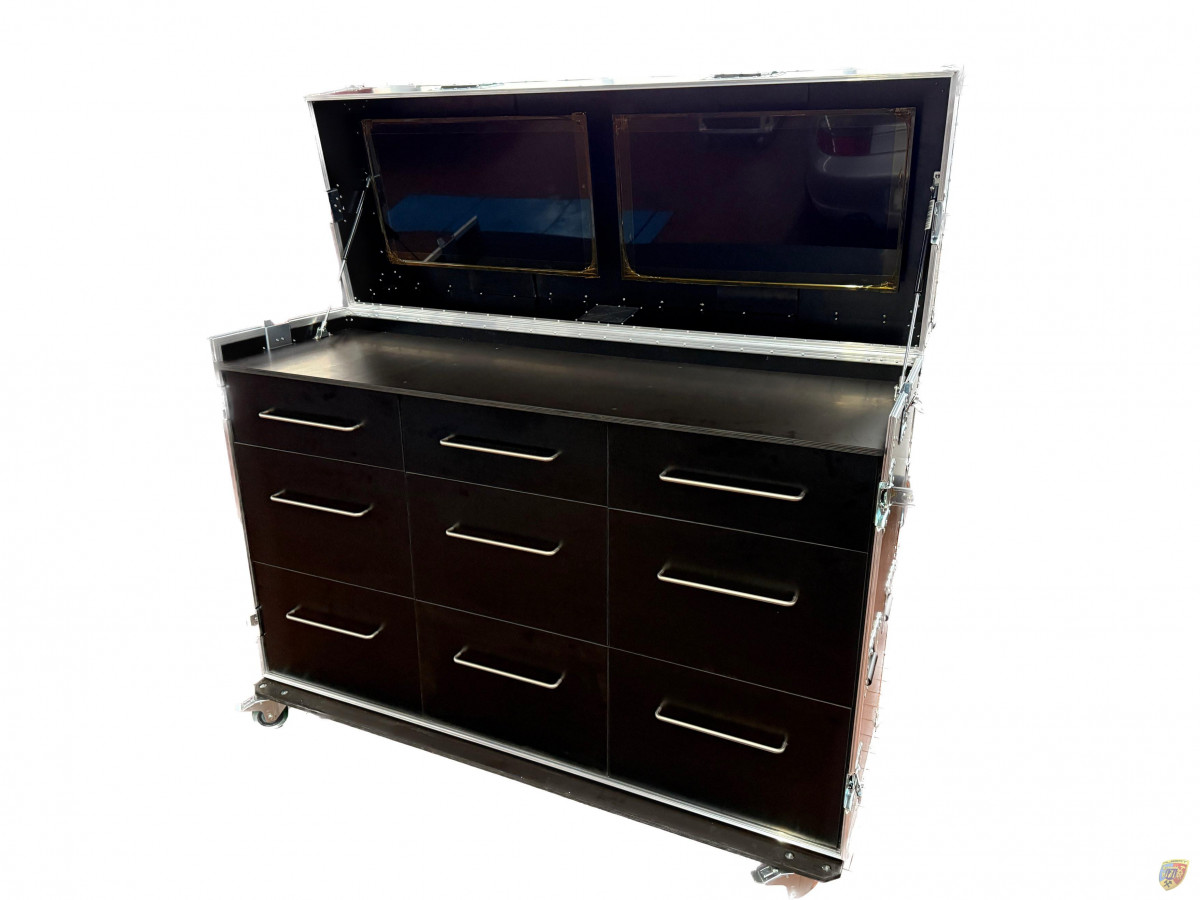

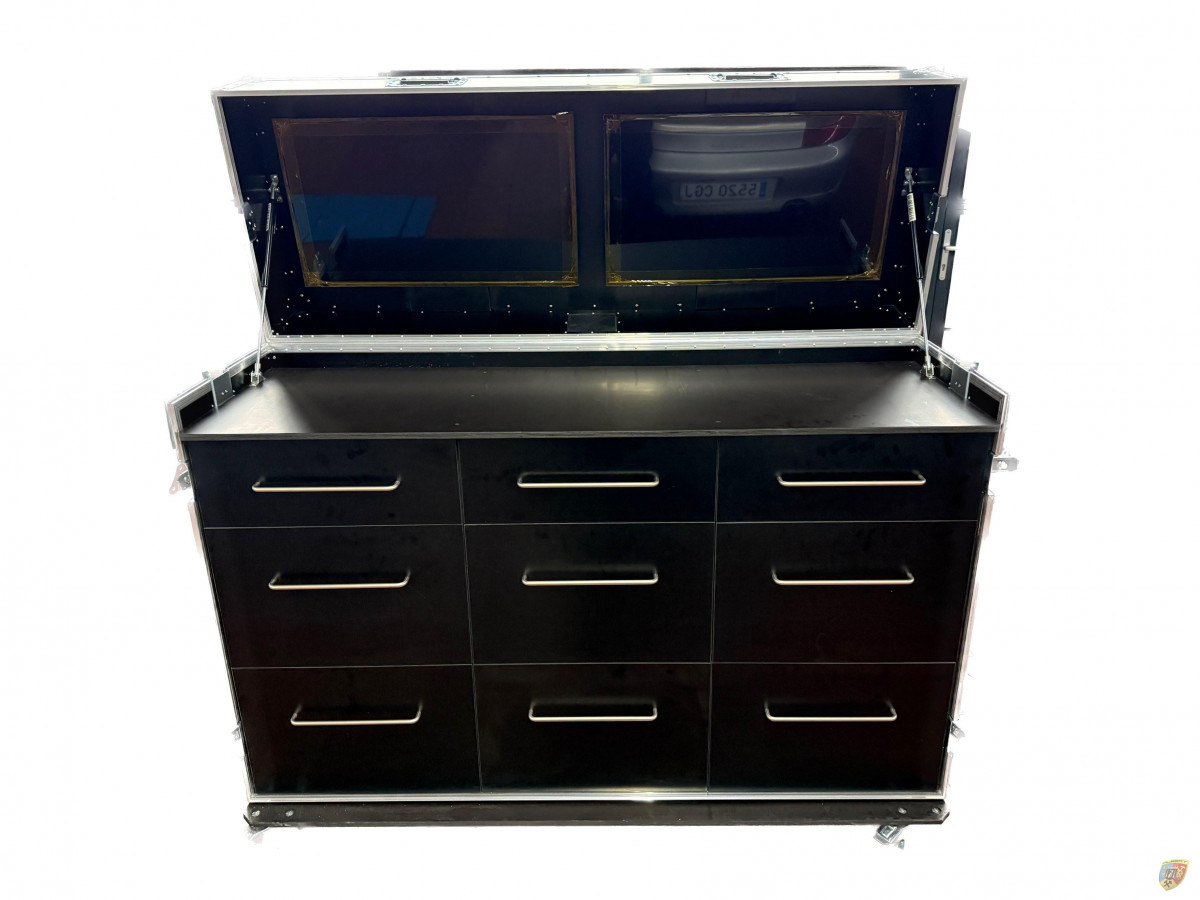

- 3 drawers per compartment. Total number of drawers 9 pieces
- 3 x SL6 usable dimensions: 470x166x440mm (WxHxD)
- 6 x SL11 Usable dimensions: 470x326x440mm (WxHxD)
- All drawers made of 12mm MP, phenol, glued,
- panel in body color
- Telescopic heavy-duty full extension with SoftClosing, load capacity up to 100kg
- 1 x bow handle each, matt stainless steel

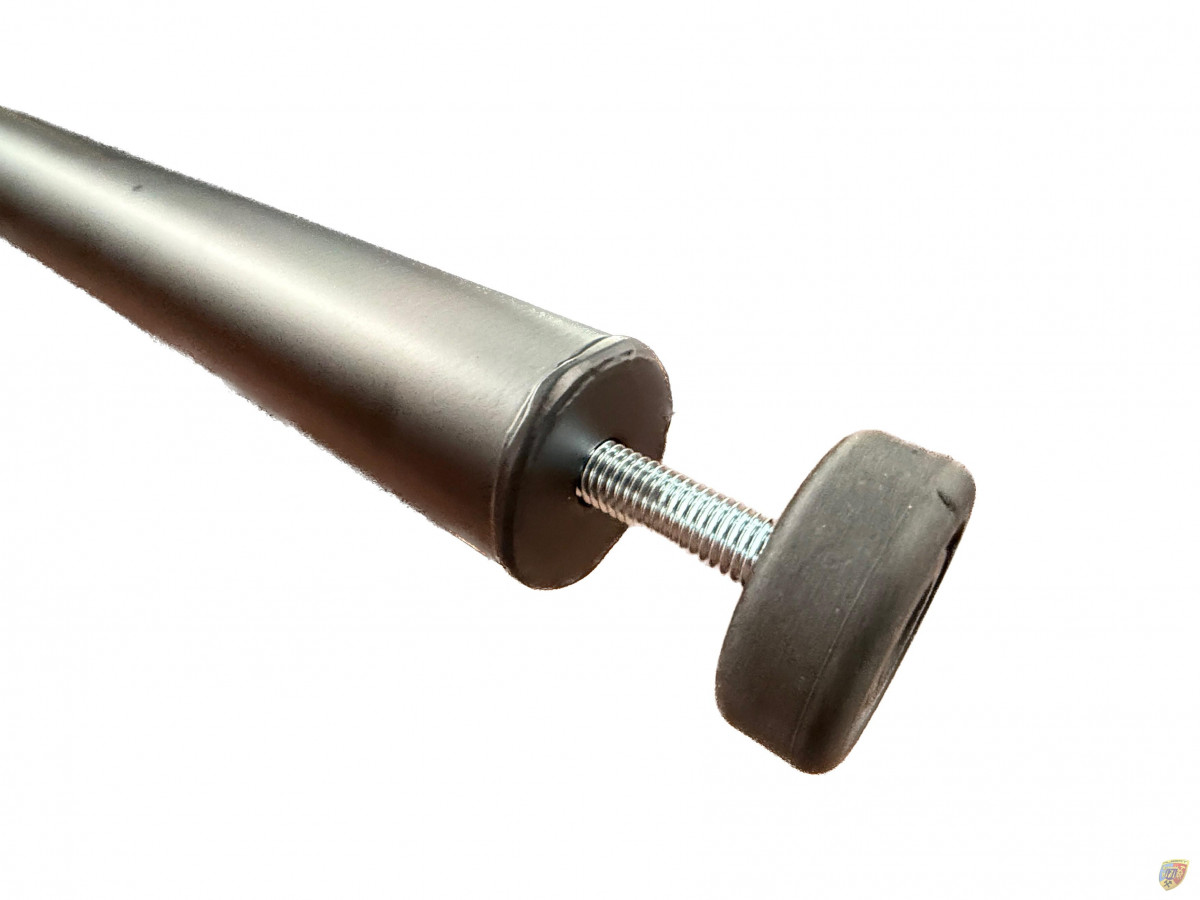

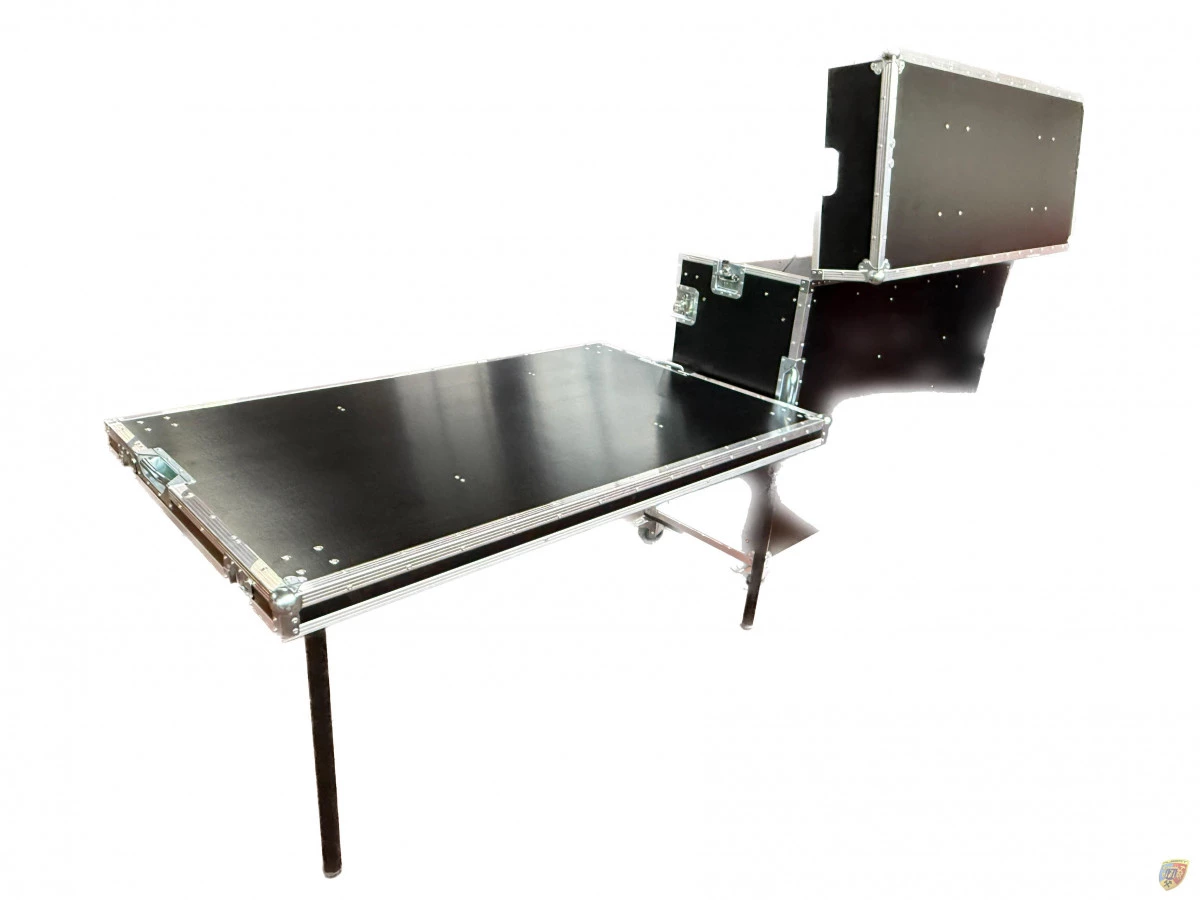

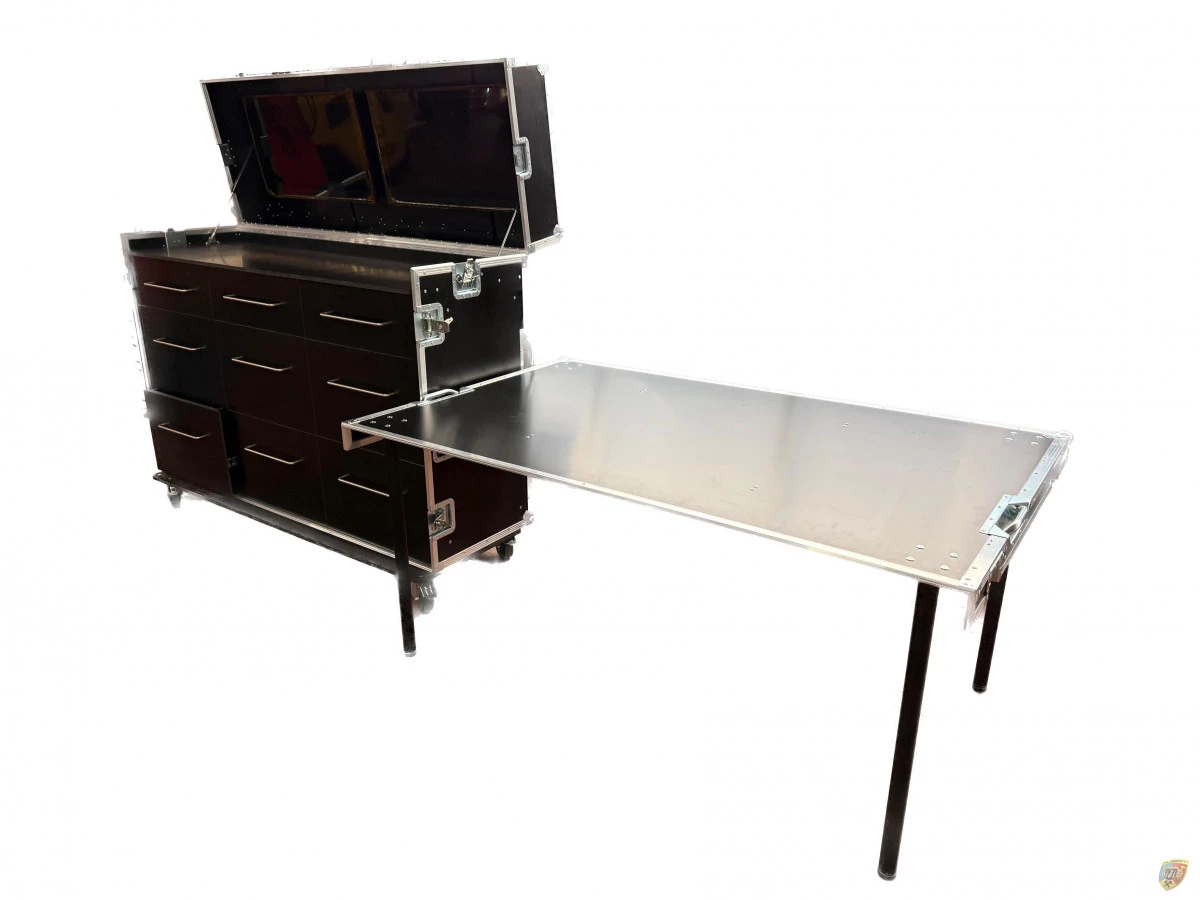

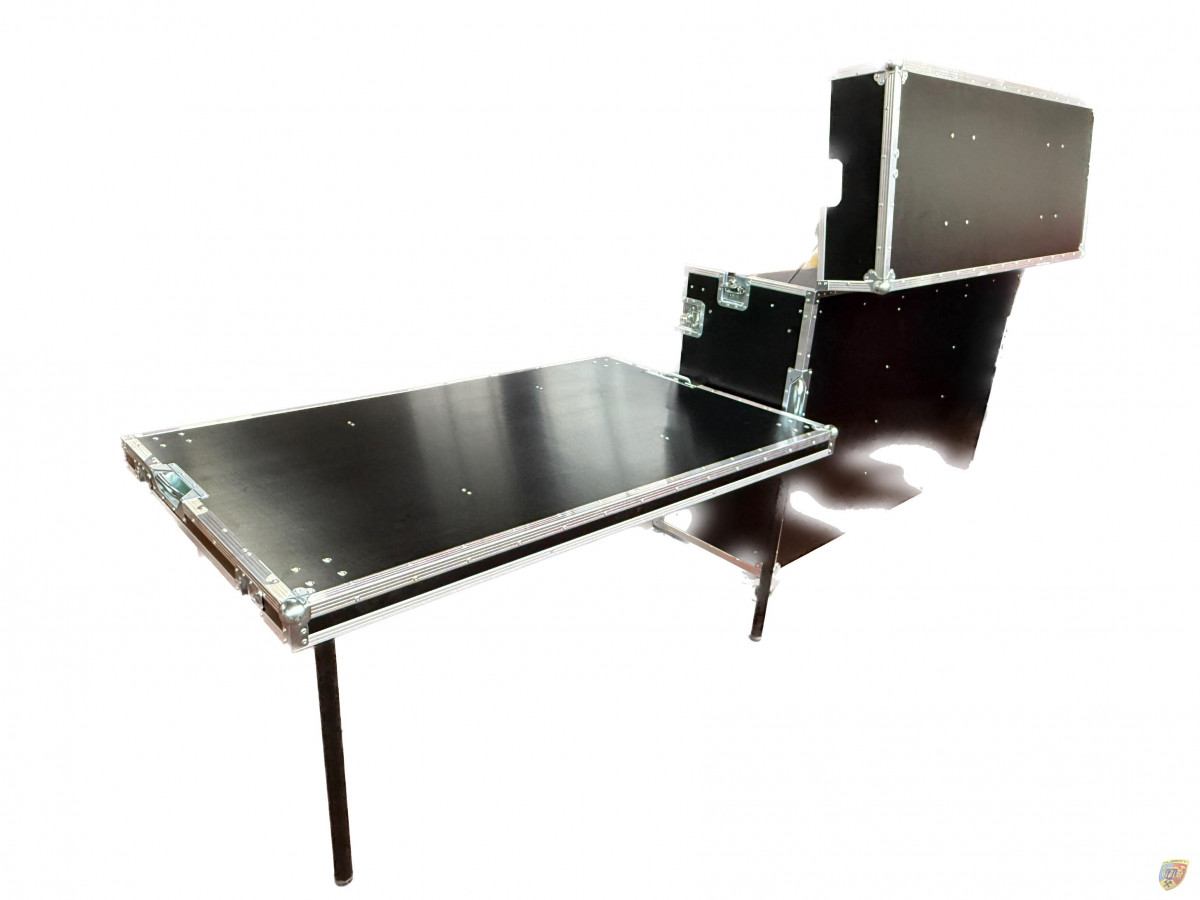

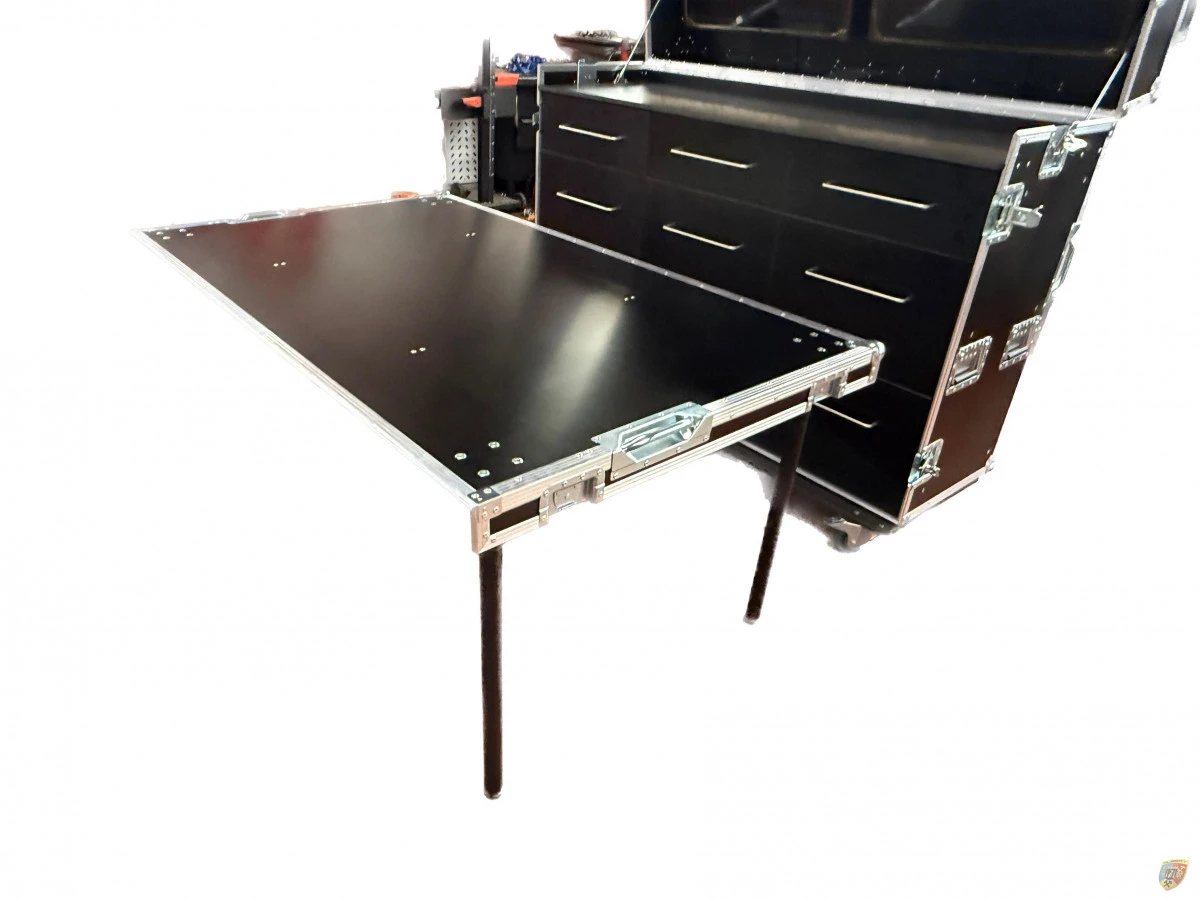

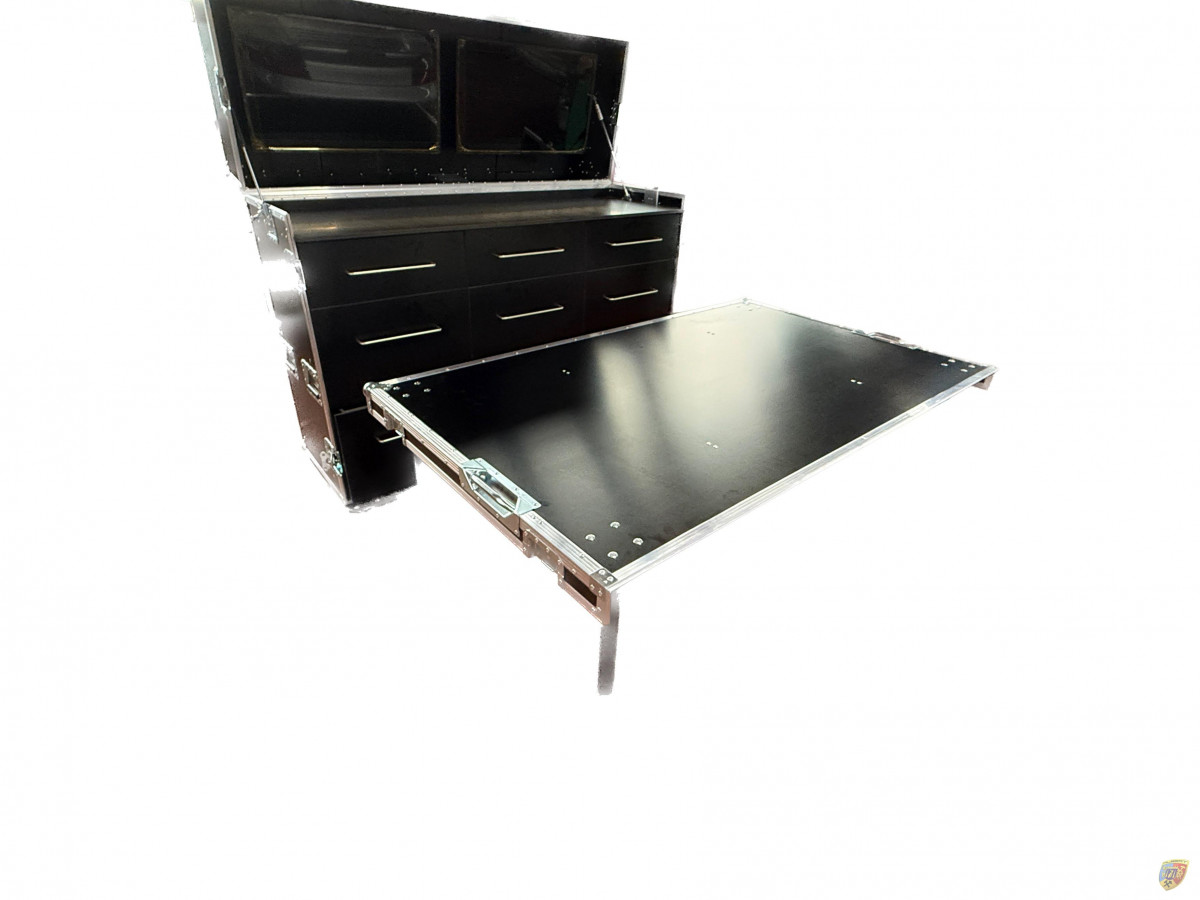

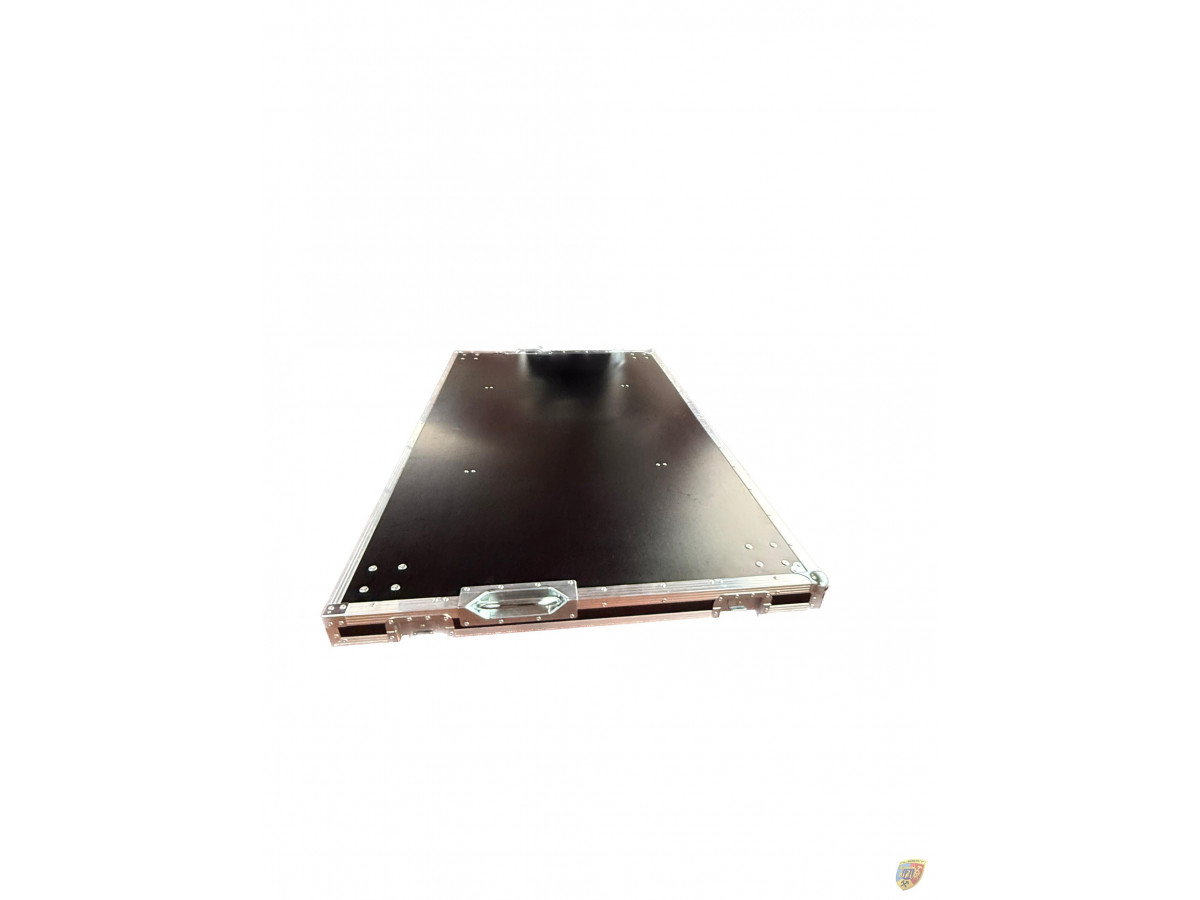

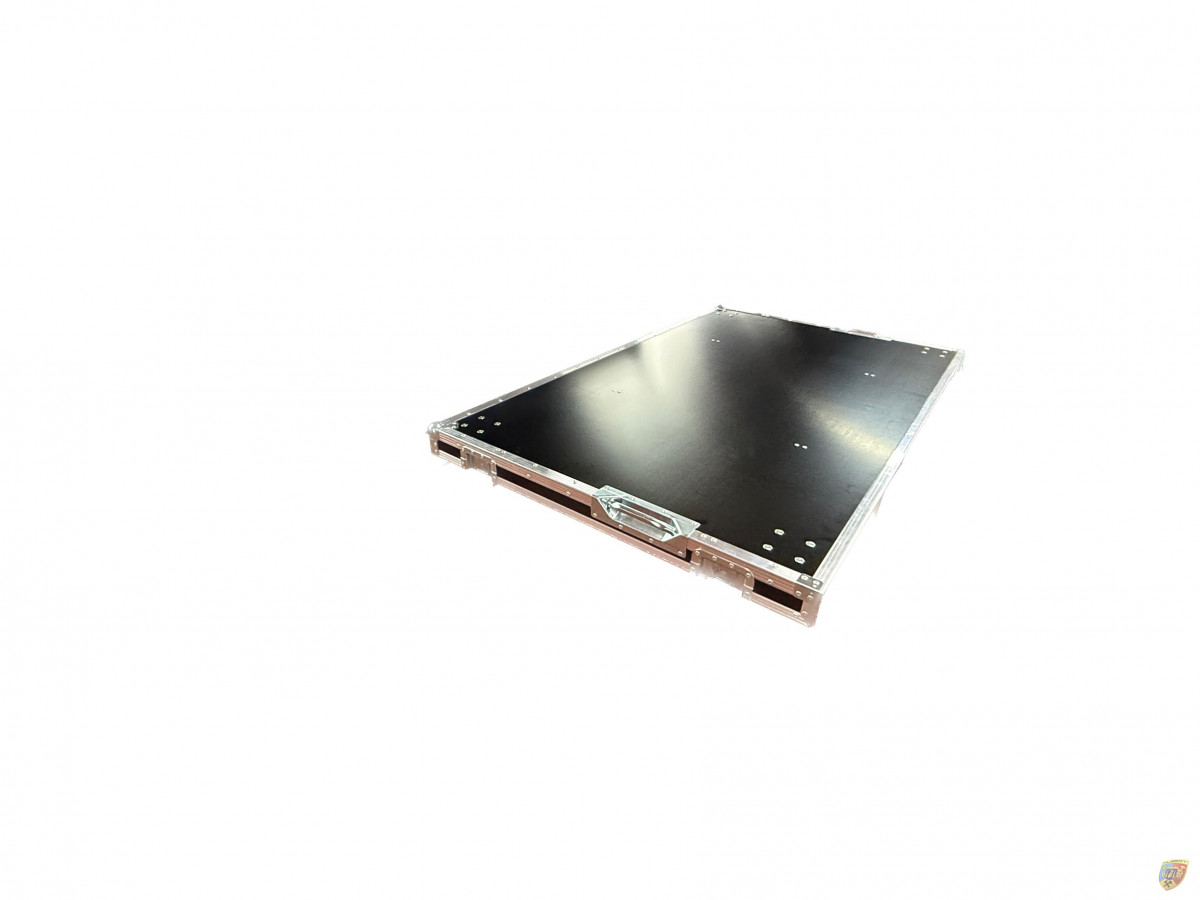

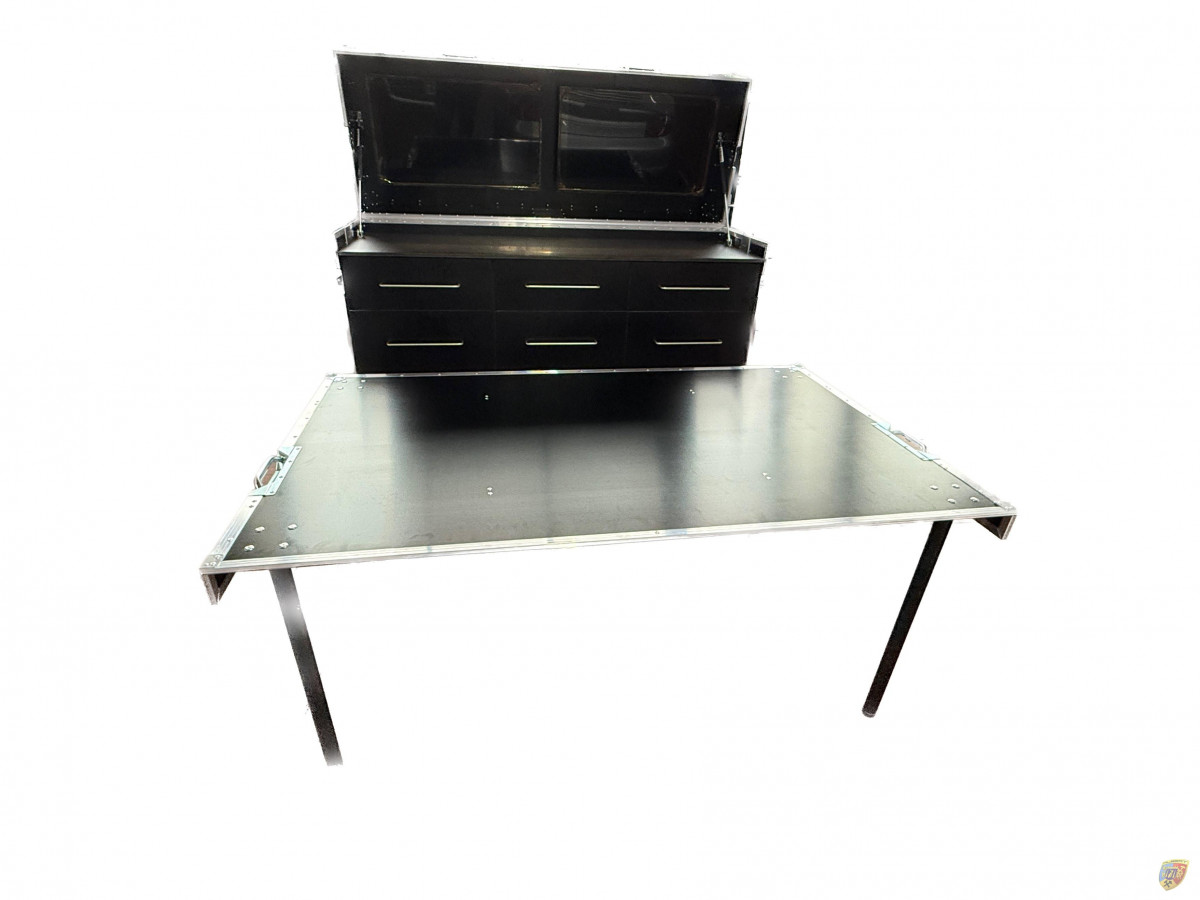

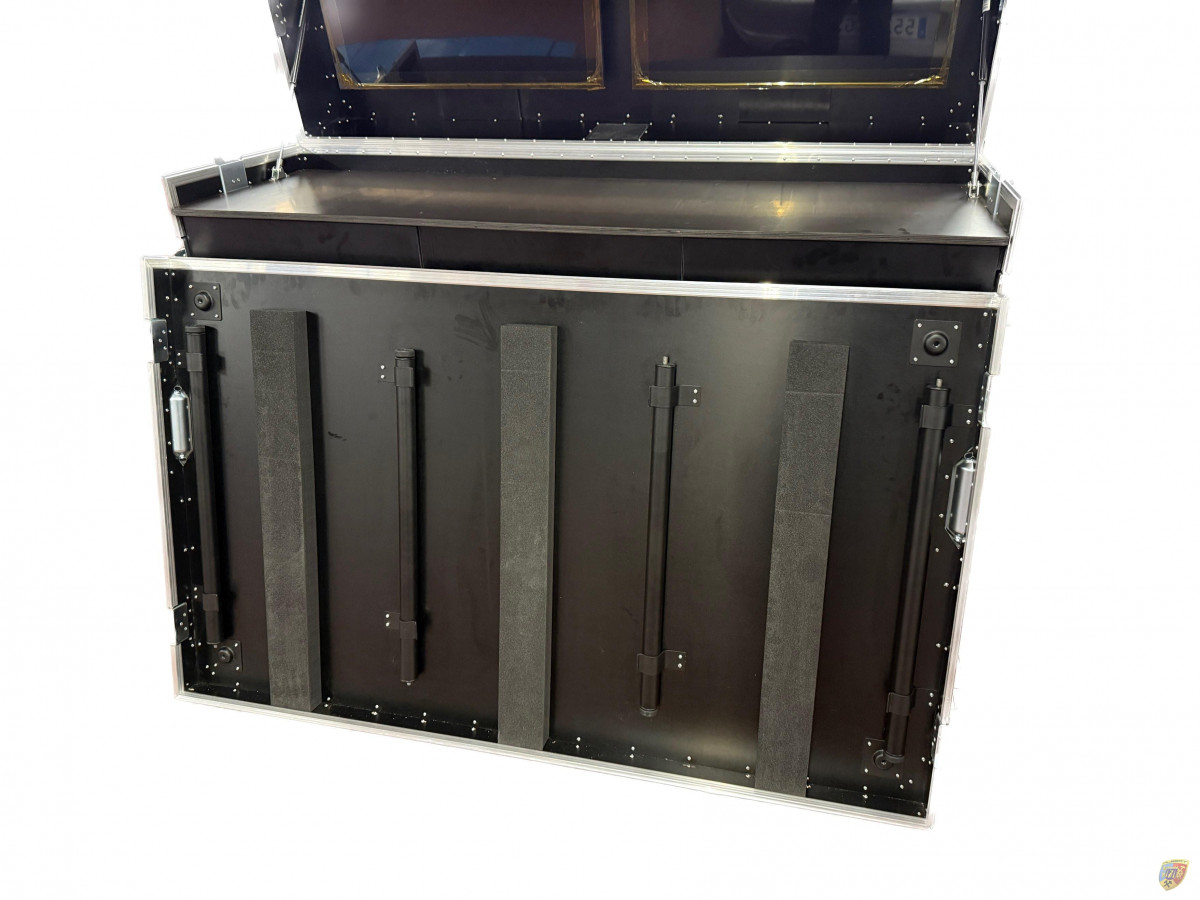

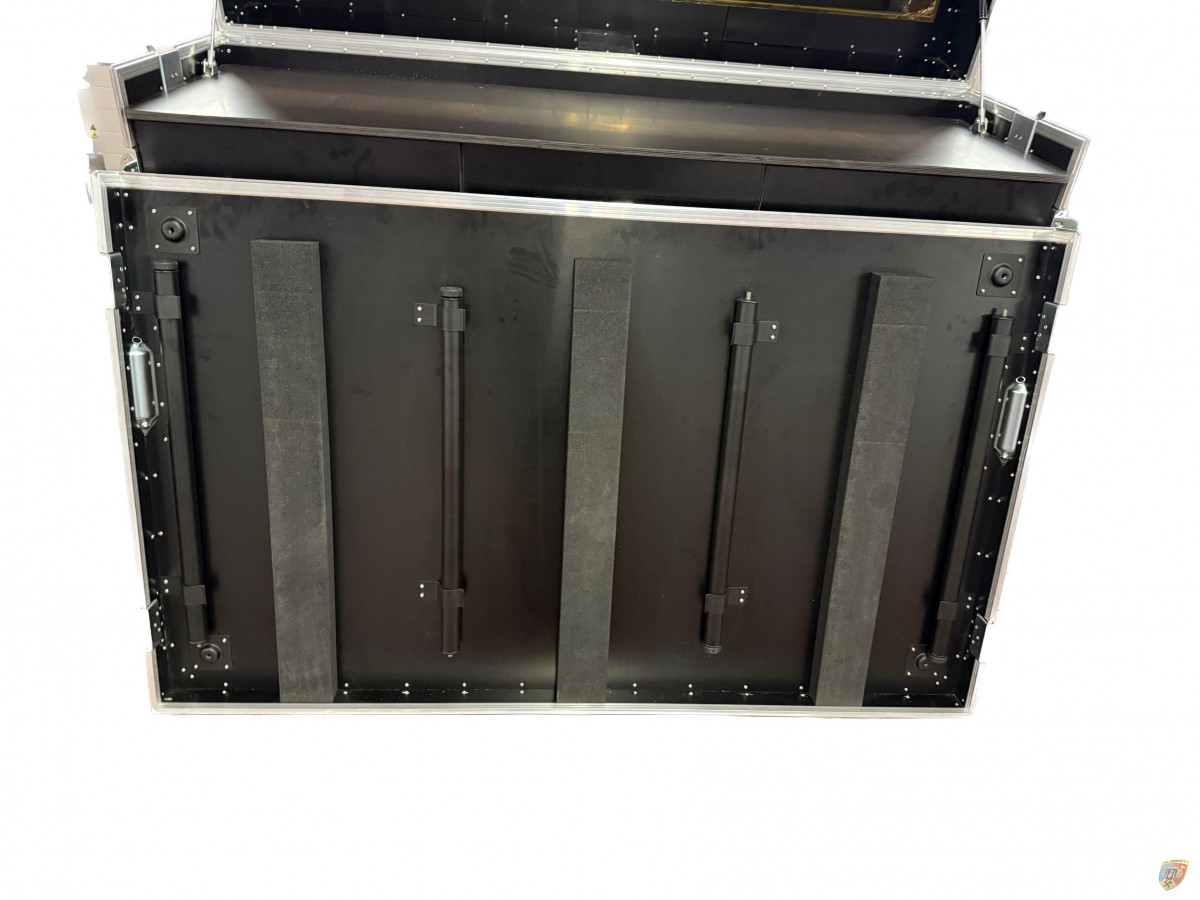

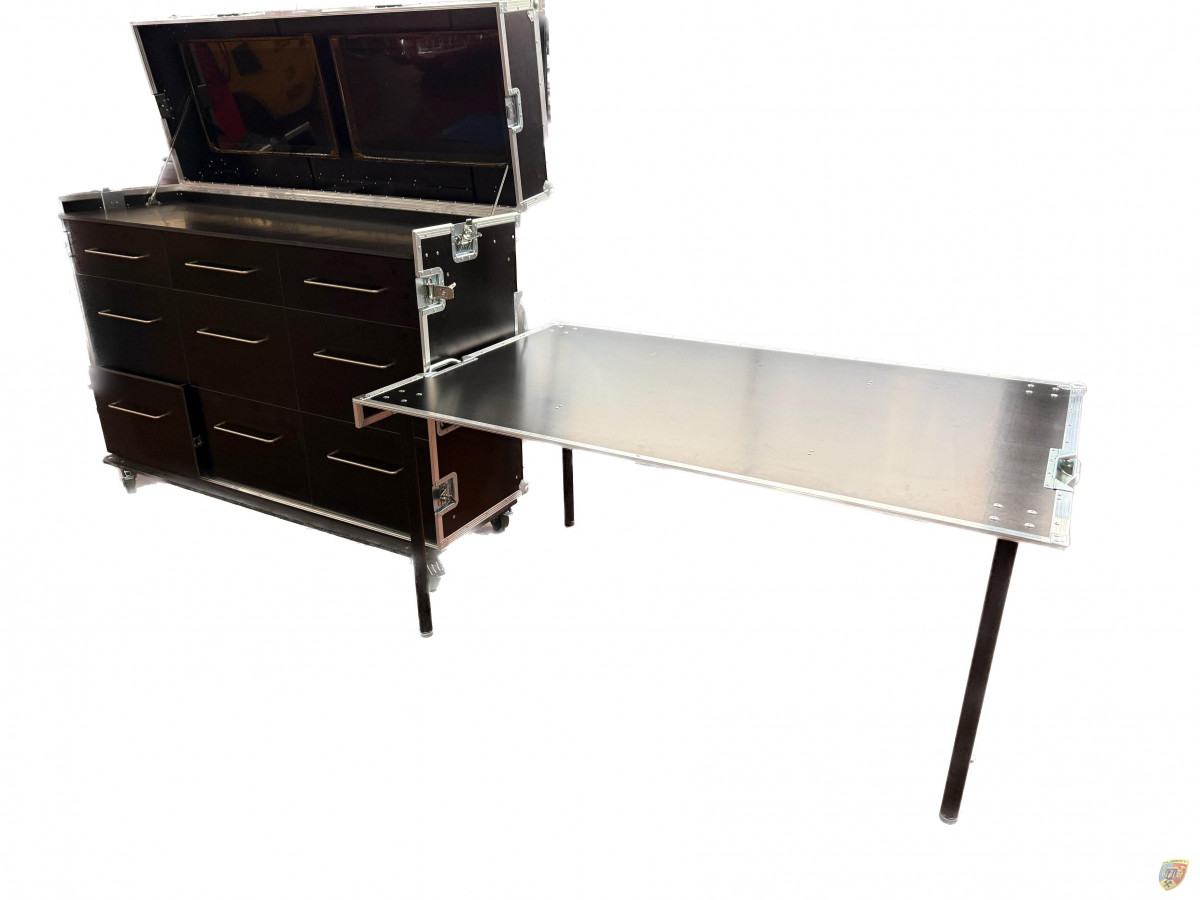

- Front cover with 2 x table leg set (The table function is used for storage or for
- light activities (e.g. working on a notebook etc.)

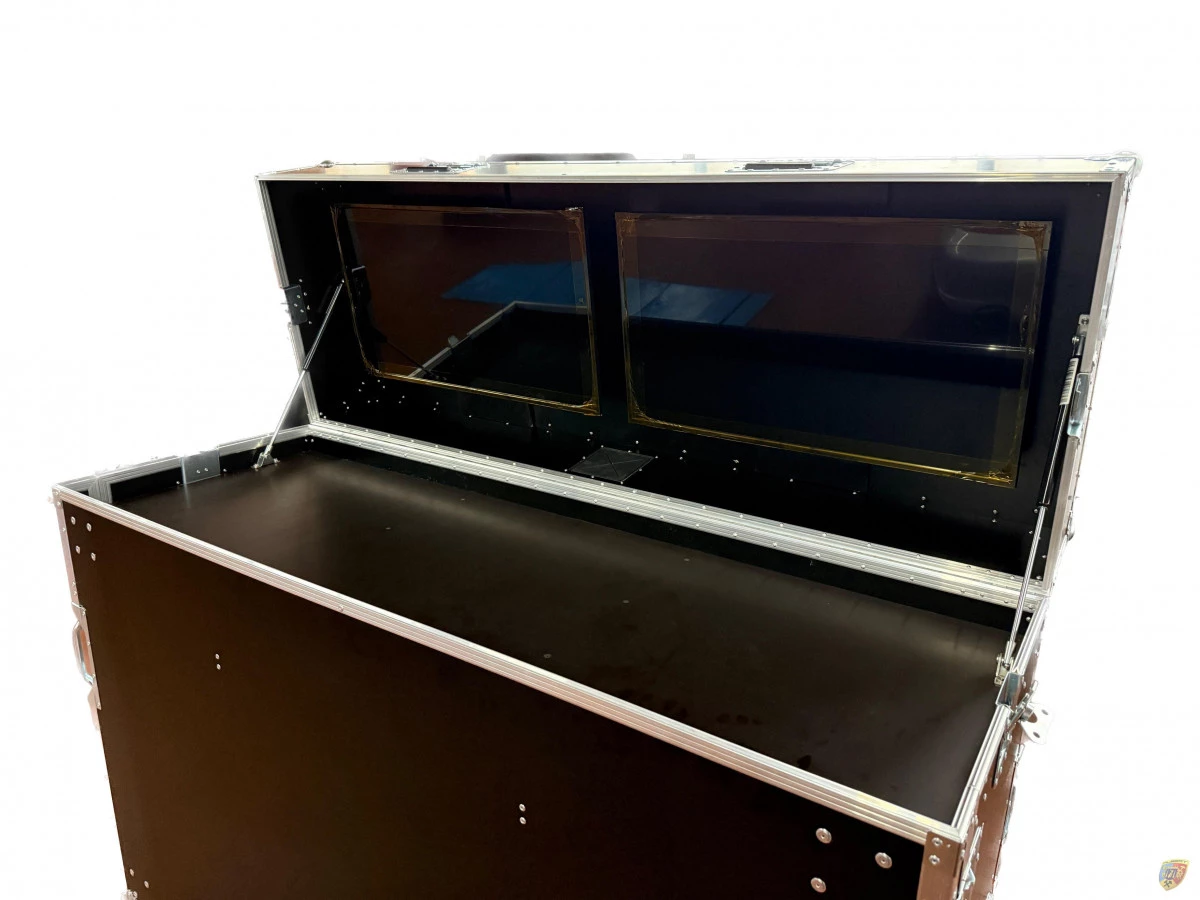

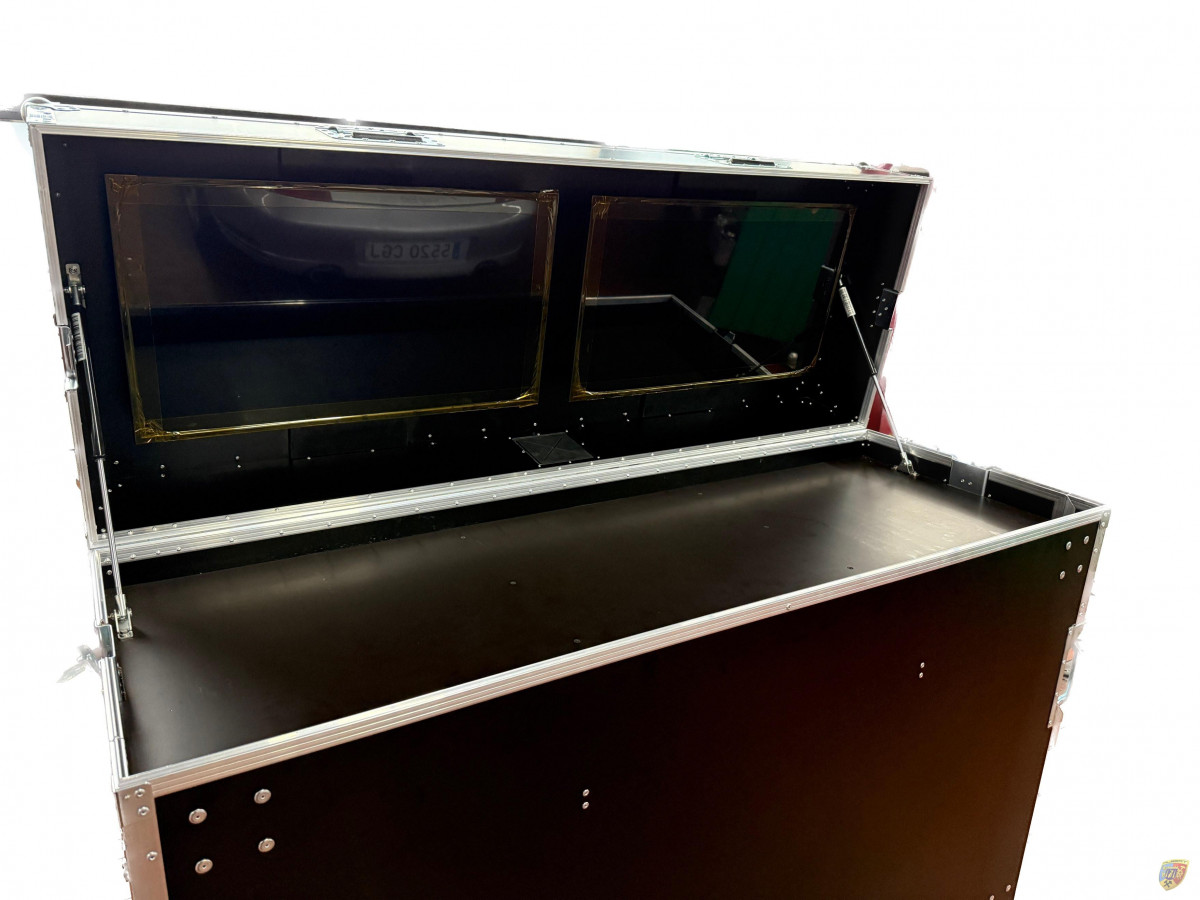

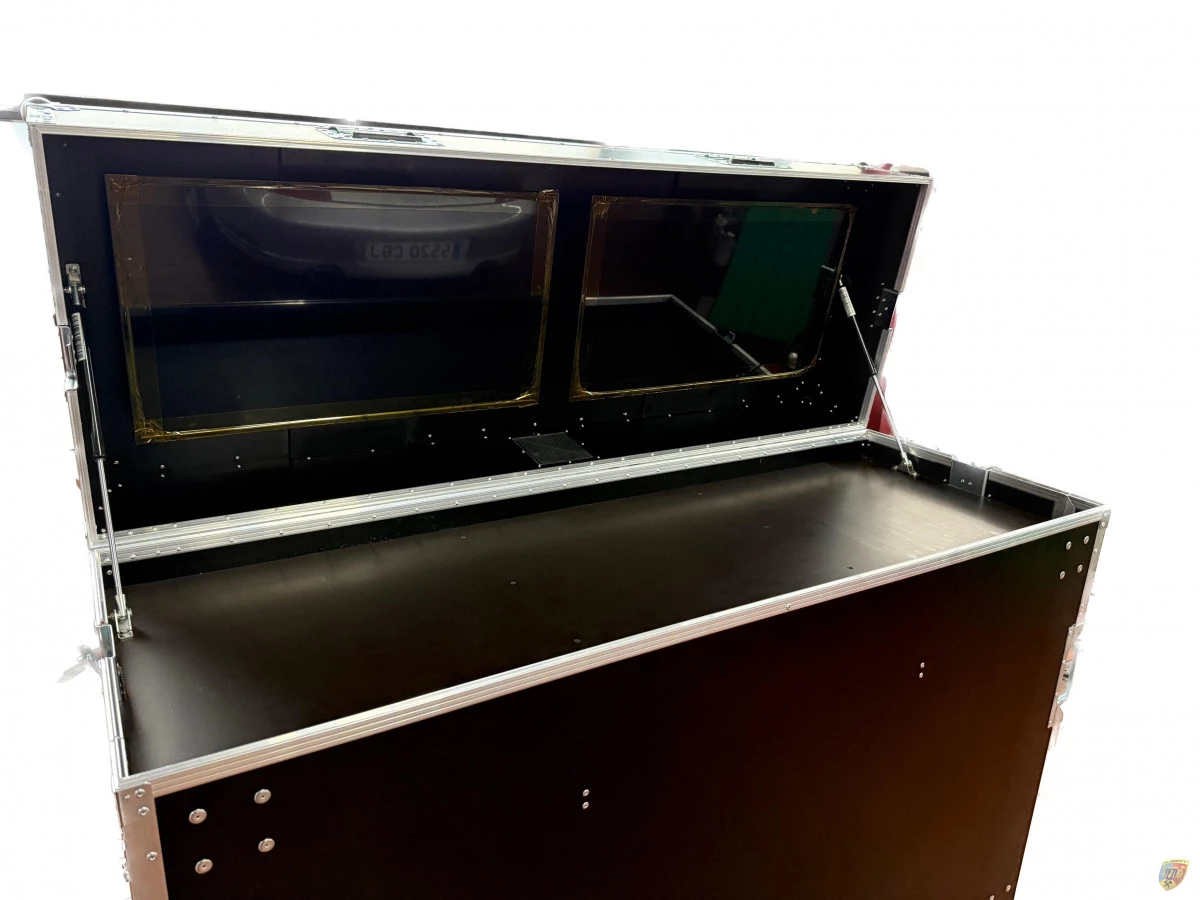

- 2 VESA mounts in the top cover
- Weight: 205kg
OPTIONAL:
Shielding and cabling – as desired or according to our recommendation:
Also available: covers (complete coverings with surcharge net: 320 Euro)
