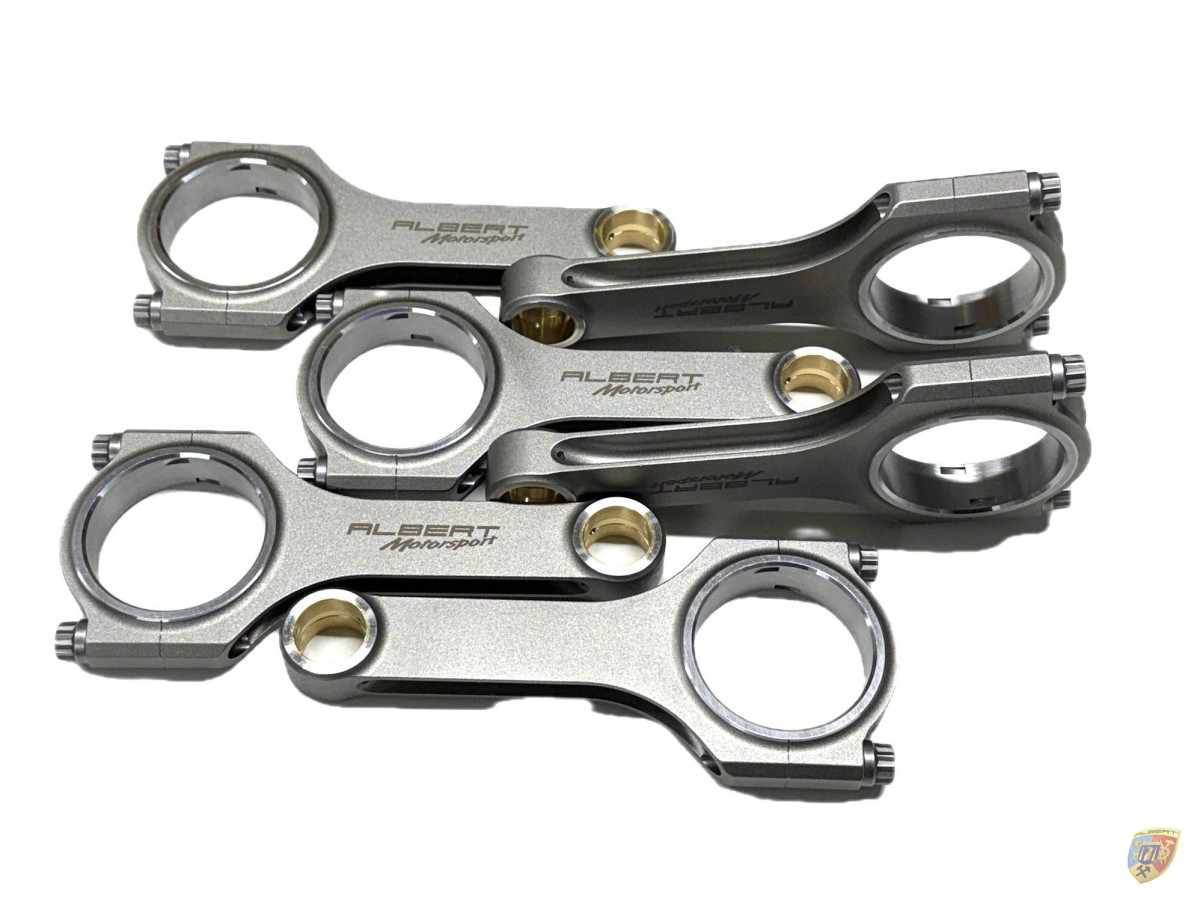

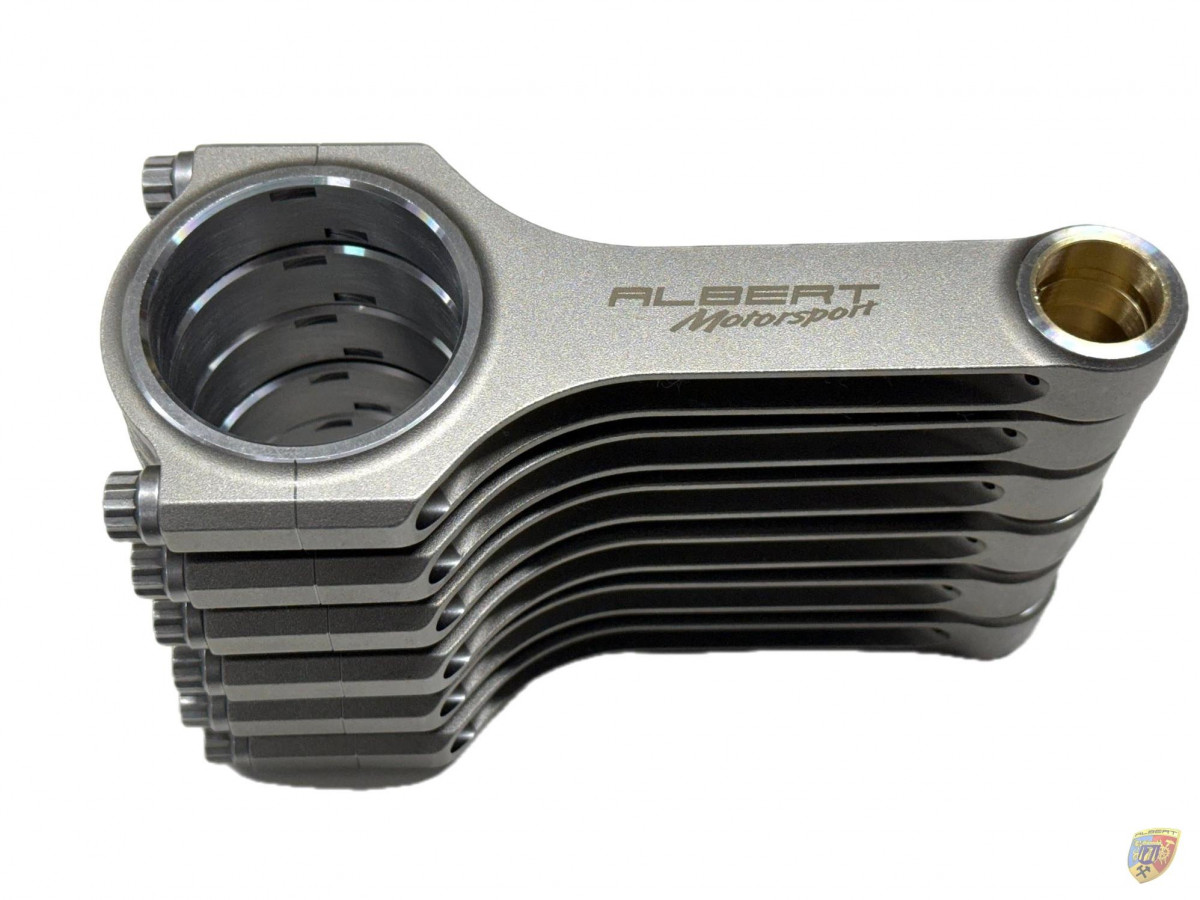

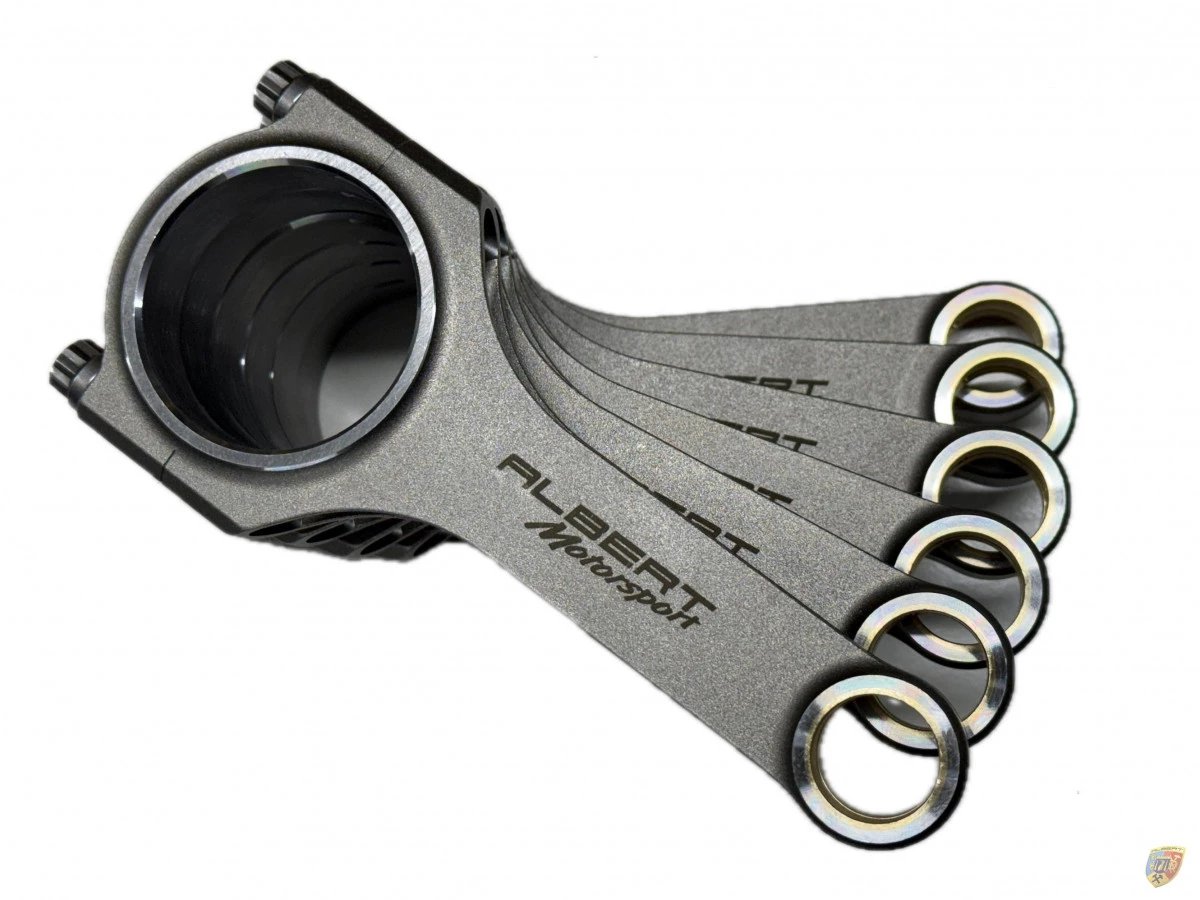

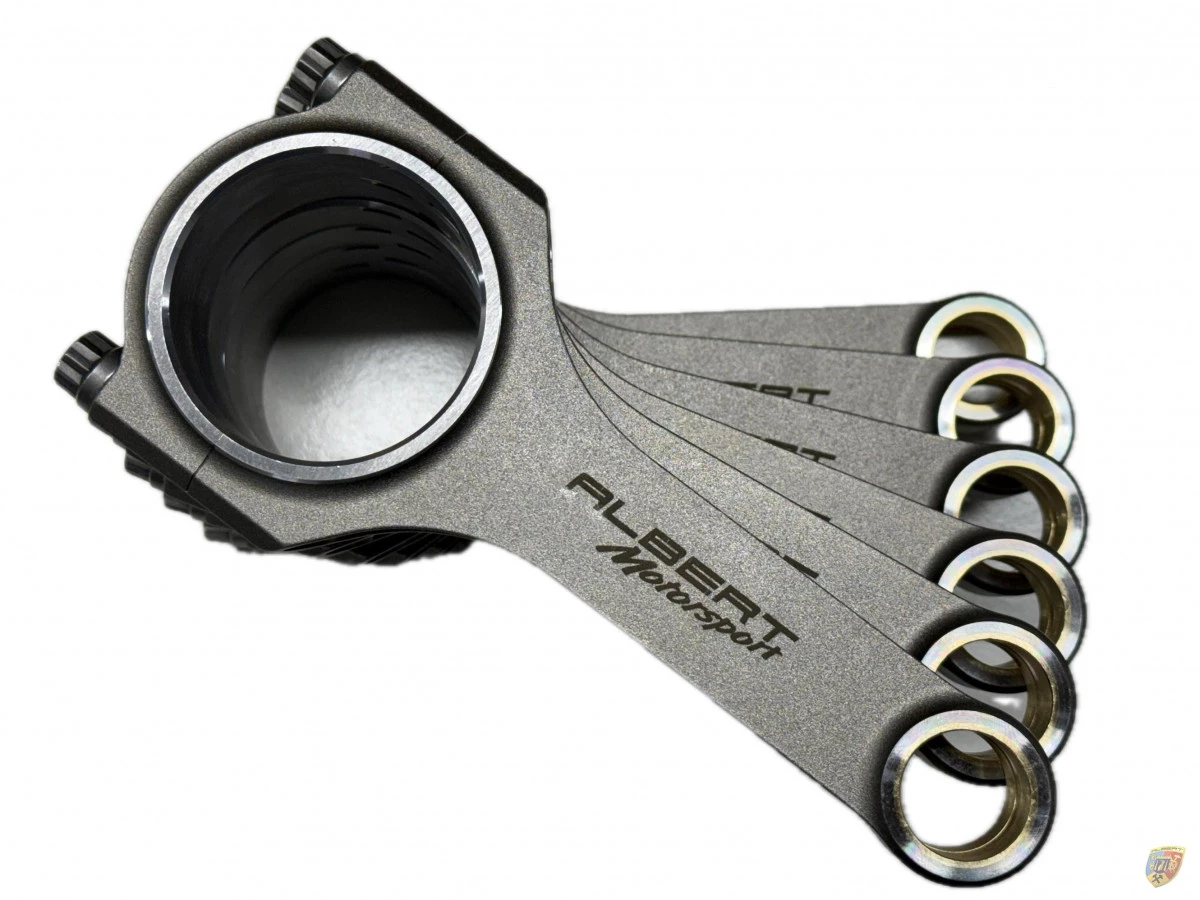

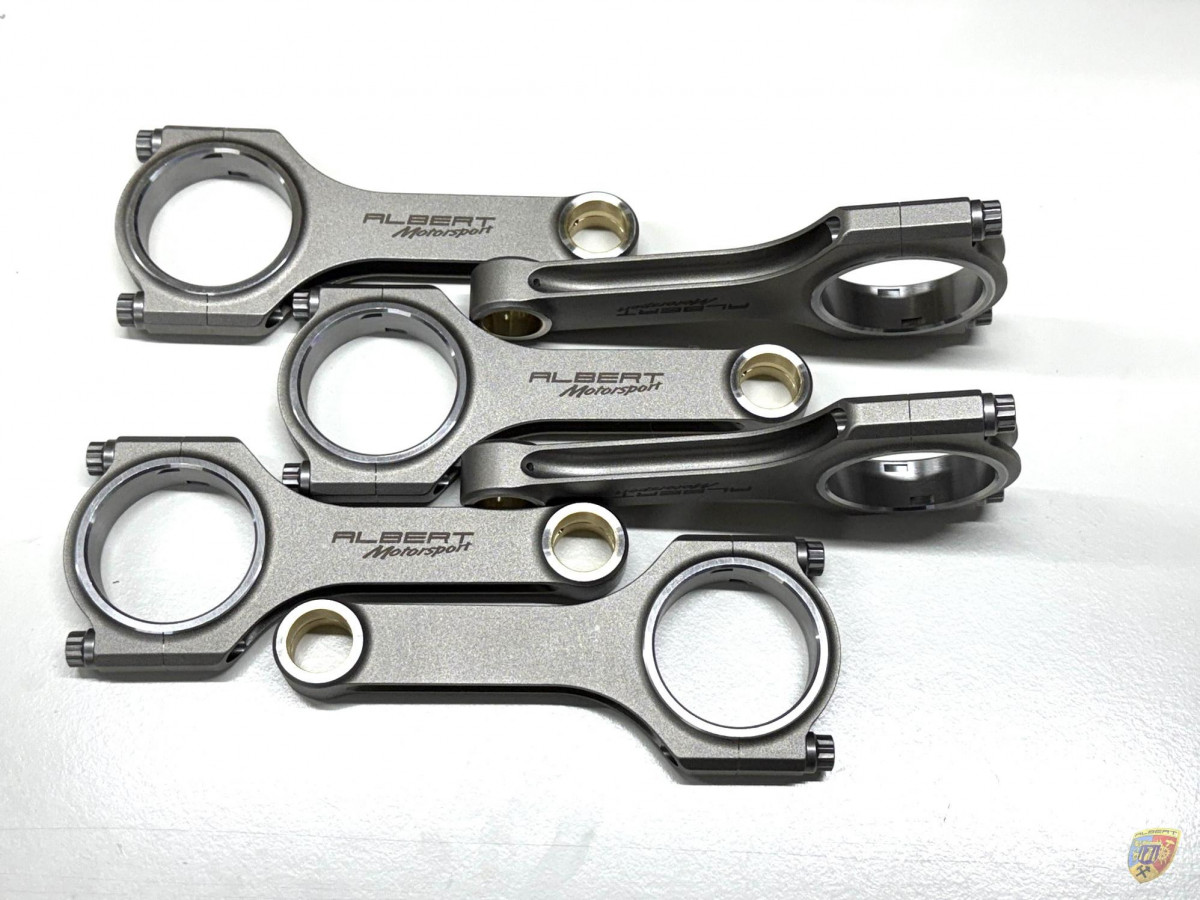

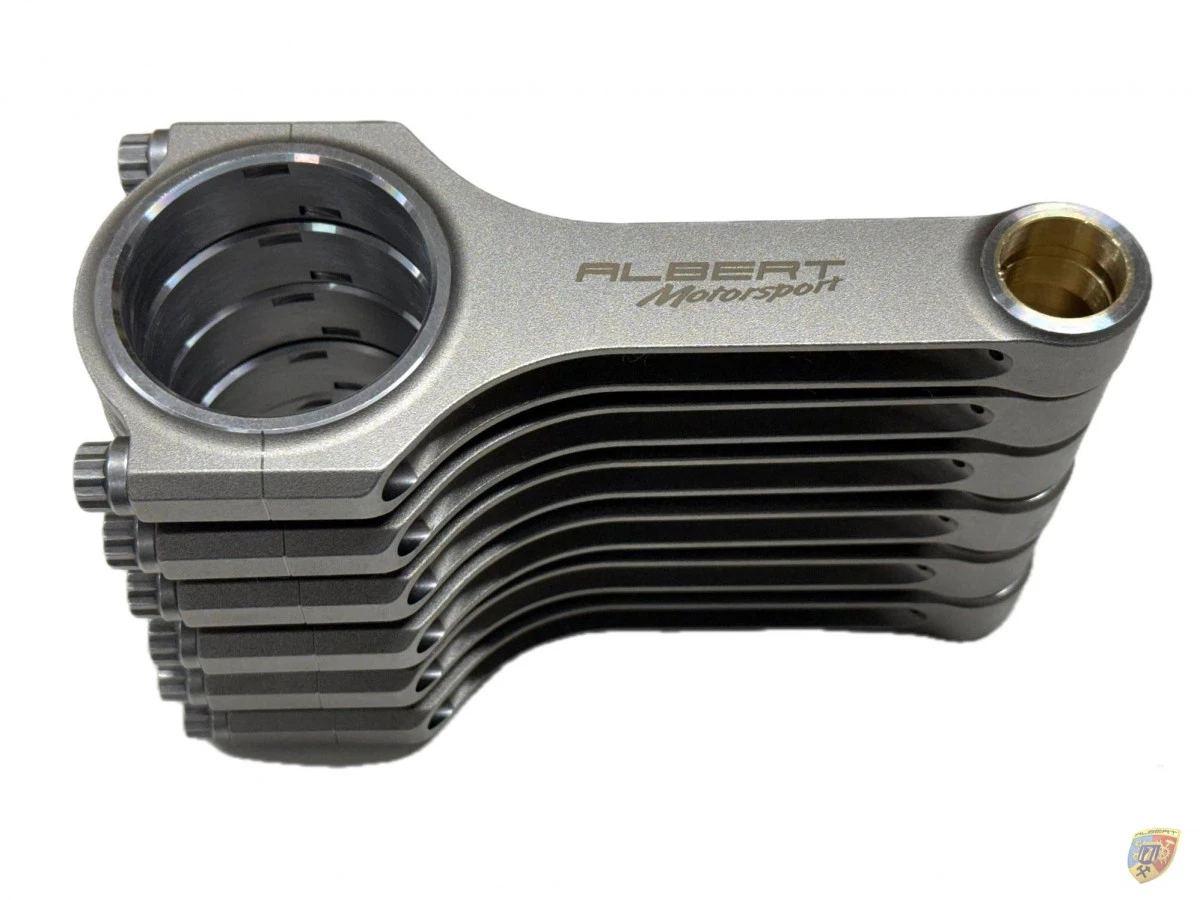

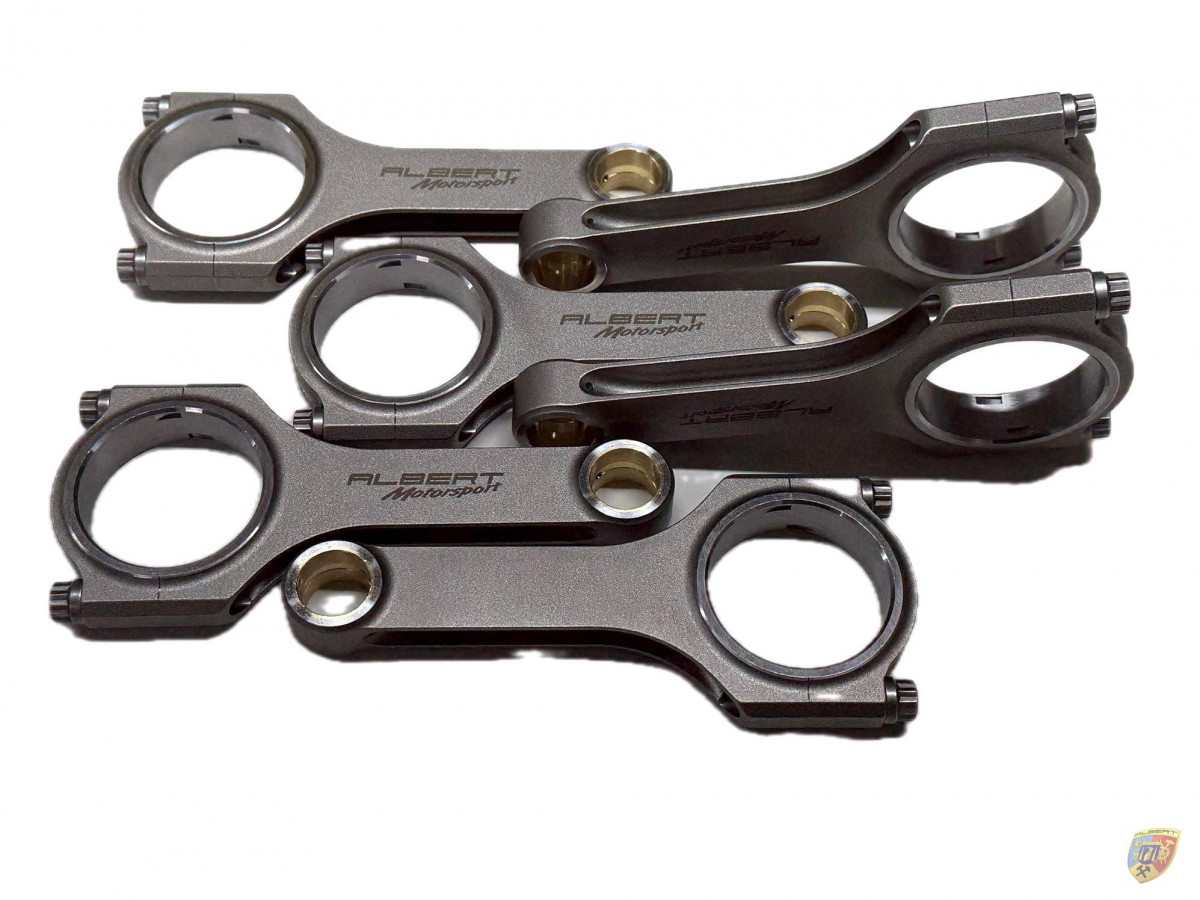

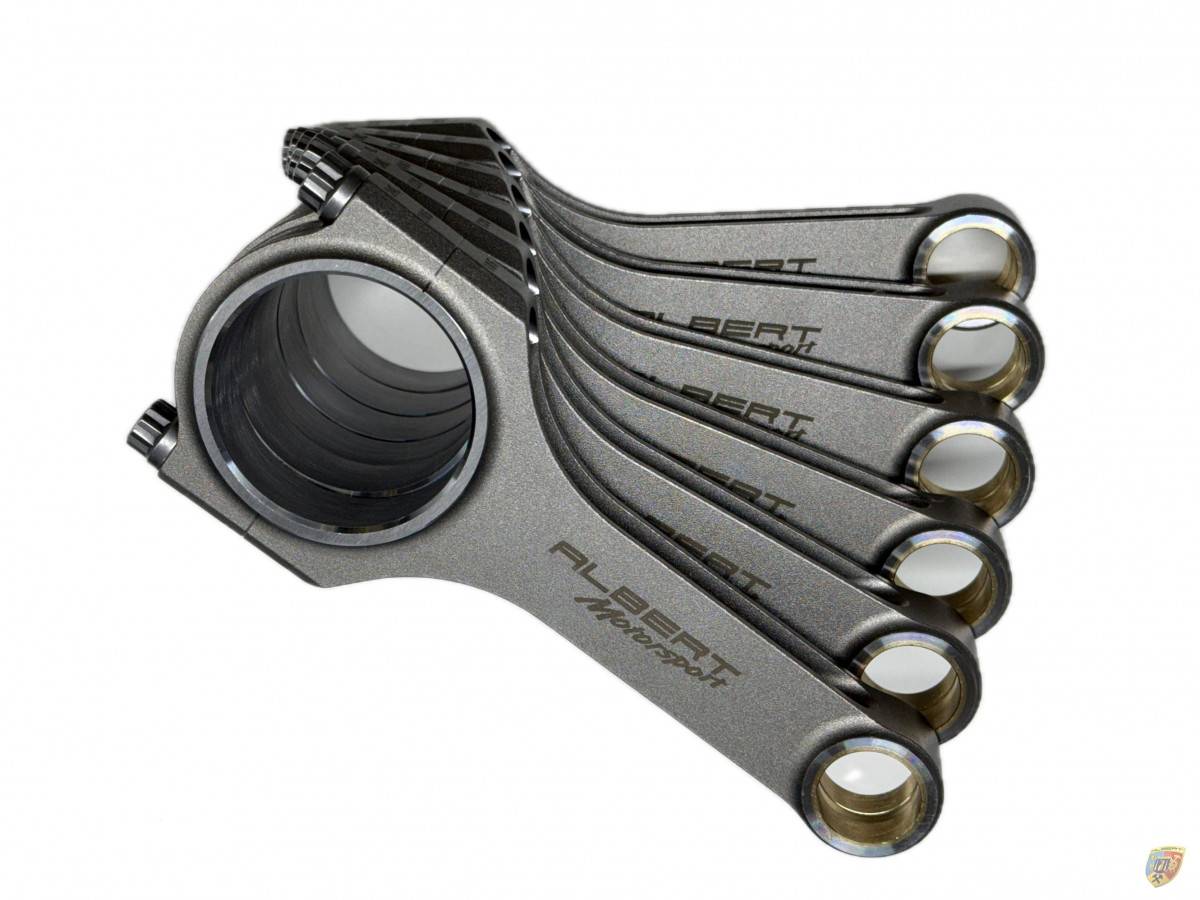

996 - 997 Sport Connecting Rod H-Shaft for 3.6 - 3.8 Liter Porsche 911

Application:

• for Porsche 996 / 997 Non-Turbo 3.6L / 3.8L
• The AMS connecting rods are installed with standard Porsche bearing shells.

Specification:

• TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
• Type: Forged 4340 Aircraft Grade Chrome Molybdenum Steel for Racing
• H-Beam Connecting Rods Quantity: 6pcs per set
• Bolts: Including bolts
• Bolt Size: 3/8"
• Tolerance: Balanced to +/- 1 gram in set
• Piston Pin Hole: +- 4/1000mm
• Power: 600HP ~ 800HP per set
• Mounting Strength (PSI): 220,000 / 230,000 PSI
• Torque: 75 NM
• Maximum acceleration: 9.000 RPM
• Warranty: 2 year warranty against manufacturing defects



Dimensions:

• Center to center length: 142mm
• Big end diameter: 56mm
• Small end diameter: 22mm
• Big end width: 19.45mm
• Small end width: 20.75mm



Features:

• Forged SAE 4340 Chrome Molybdenum steel for superior strength and durability, also for racing
• Designed and processed by CNC machines.
• All big and small ends are machined using a SUNNEN honing machine
• Precise alignment sleeves position the rod cap, maintain the big end bore size and eliminate cap wander
• 100% X-rayed, sonic tested and magnafluxed
• Multi-stage heat treated- Shot peened to reduce stress
• Comes with the bronzed bushing suitable for the floating piston pin



Note:

• Professional installation is highly recommended (no instructions included)
• OEM numbers, for comparison purposes: 996.103.985.00 - 996.103.985.02
