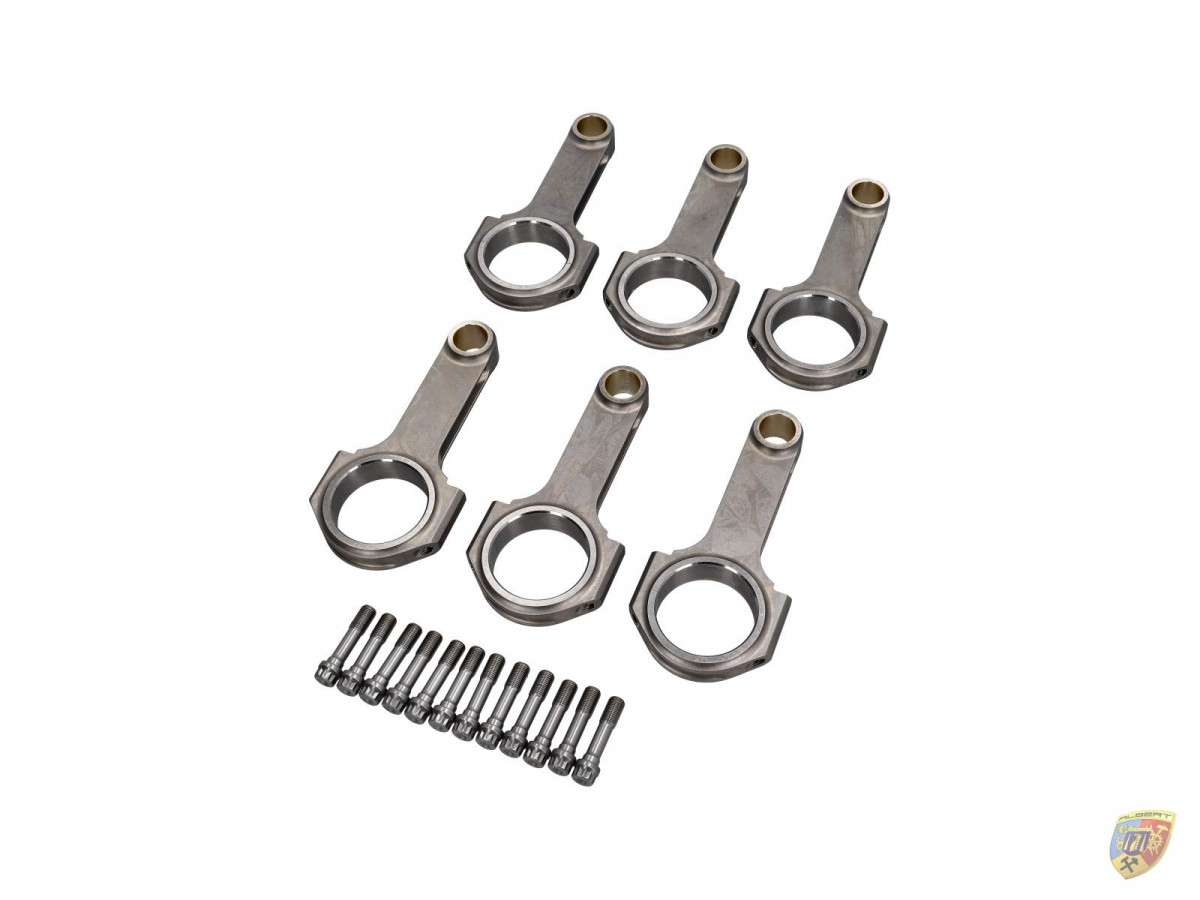

911 SC 3.0 - 3.2 Liter Connecting Rod Set Sports Connecting Rods for Porsche 911

Application:

• for Porsche 911 of the types: 911 SC 3.0 - 3.2 liters.
• The AMS connecting rods are installed with standard Porsche bearing shells.

Specification:

• TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
• Forged 4340 chrome-molybdenum steel for series production and racing
• H-beam connecting rods for high strength
• Delivery quantity: 6 pieces per set
• Screws: Including high-strength connecting rod screws
• Screw size: 3/8"
• Tolerance: Balanced to + / - 1 gram
• Piston pin hole: +- 4 / 1000 mm
• Power: 600 HP ~ 800 HP per set
• Mounting strength (PSI): 220,000 - 230,000 PSI
• Torque: 75 NM
• Maximum speed: up to 9,000 rpm
• Maximum power: up to 800 hp / 588 kW
• Warranty: 2 years warranty against manufacturing defects

Features:

• Forged SAE 4340 chrome-molybdenum steel for superior strength and durability, even for racing.
• Manufactured and machined with CNC machines.
• All connecting rods and connecting rod ends are machined with precise honing machines!
• Precise alignment sleeves position the connecting rod cap, maintain the connecting rod bore size and prevent the cap from wandering
• 100% x-rayed, sonicated and magnafluxed.
• The connecting rods are heat treated in several stages.
• Shot blasted to reduce stress and notch effect.
• Comes with bronzed connecting rod bushing for floating piston pins.



A notice:

• Professional installation is highly recommended (no instructions included)
• OEM numbers, for comparison purposes: 93010397400
